Assembly

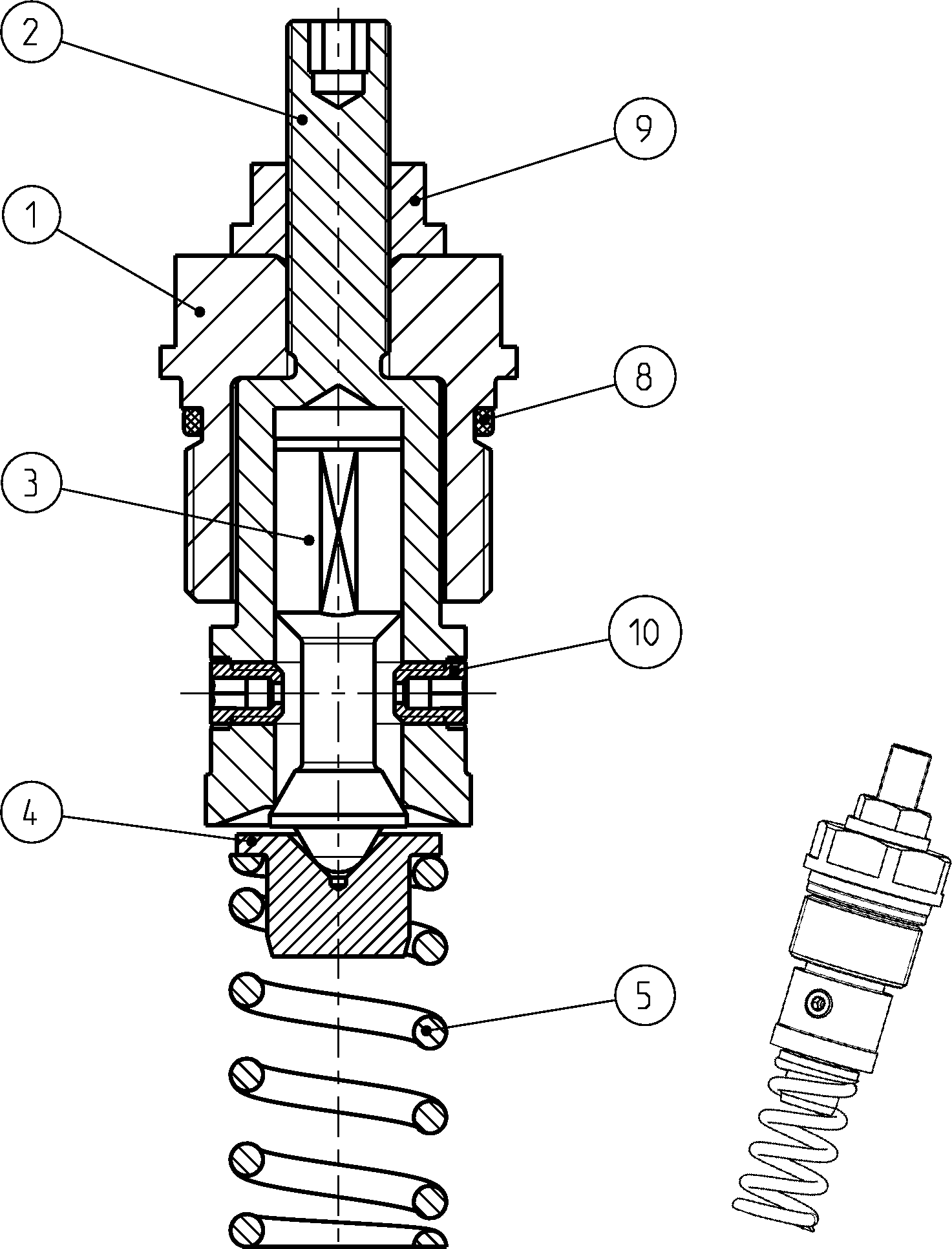

PRESSURE RELIEF VALVER902228945
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902215626 | SCREW PLUG | 1 | ||
| R902215719 | ADJUSTING SCREW | 1 | ||
| R909436363 | VALVE SPOOL | 1 | ||
| R902010344 | SPRING DISK | 1 | ||
| R909436365 | COMPRESSION SPRING | 1 | ||
| R909083763 | O-RINGD | 1 | ||
| R909153271 | SEALING NUTD | 1 | ||
| R909156496 | NOZZLE | 2 |
