Assembly

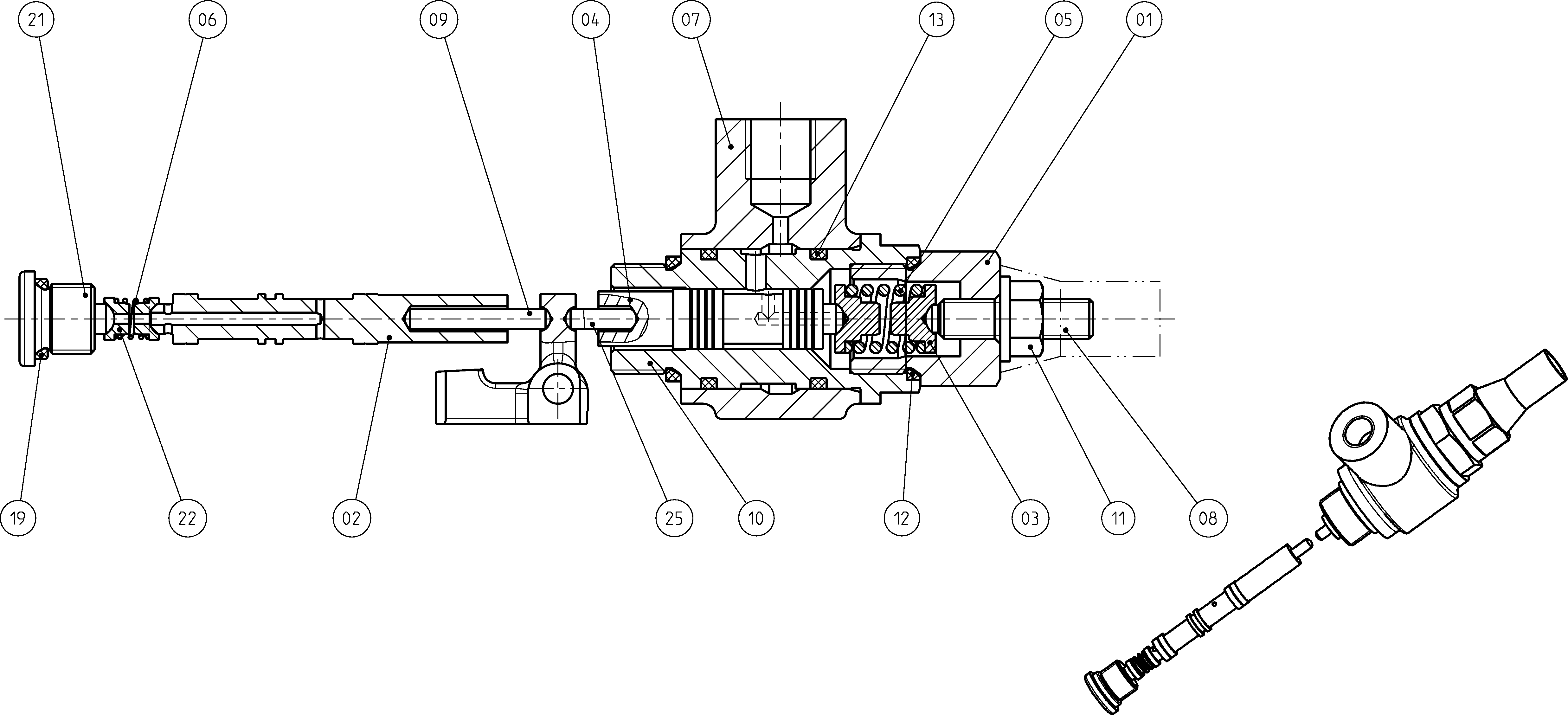

CONTROL ELEMENTR902229767
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909440779 | SCREW PLUG | 1 | ||
| 2 | R909921010 | CONTROL PISTON | 1 | |
| 3 | R902219980 | SPRING BOLT | 2 | |
| R902229664 | CONTROL PISTON | 1 | ||
| 5 | R902012047 | COMPRESSION SPRING | 1 | |
| 6 | R909400552 | COMPRESSION SPRING | 1 | |
| R909419399 | CONNECTING PIECE | 1 | ||
| 8 | R909444953 | SETSCREW | 1 | |
| 9 | R909440839 | BOLT | 1 | |
| R909449995 | THREADED PART | 1 | ||
| R909152707 | SEALING NUTD | 1 | ||
| R909083758 | O-RINGD | 2 | ||
| R909083761 | O-RINGD | 2 | ||
| R909086729 | O-RINGD | 1 | ||
| R909449986 | SCREW PLUG | 1 | ||
| R909449985 | SPRING DISK | 2 | ||
| R909440794 | BOLT | 1 |
