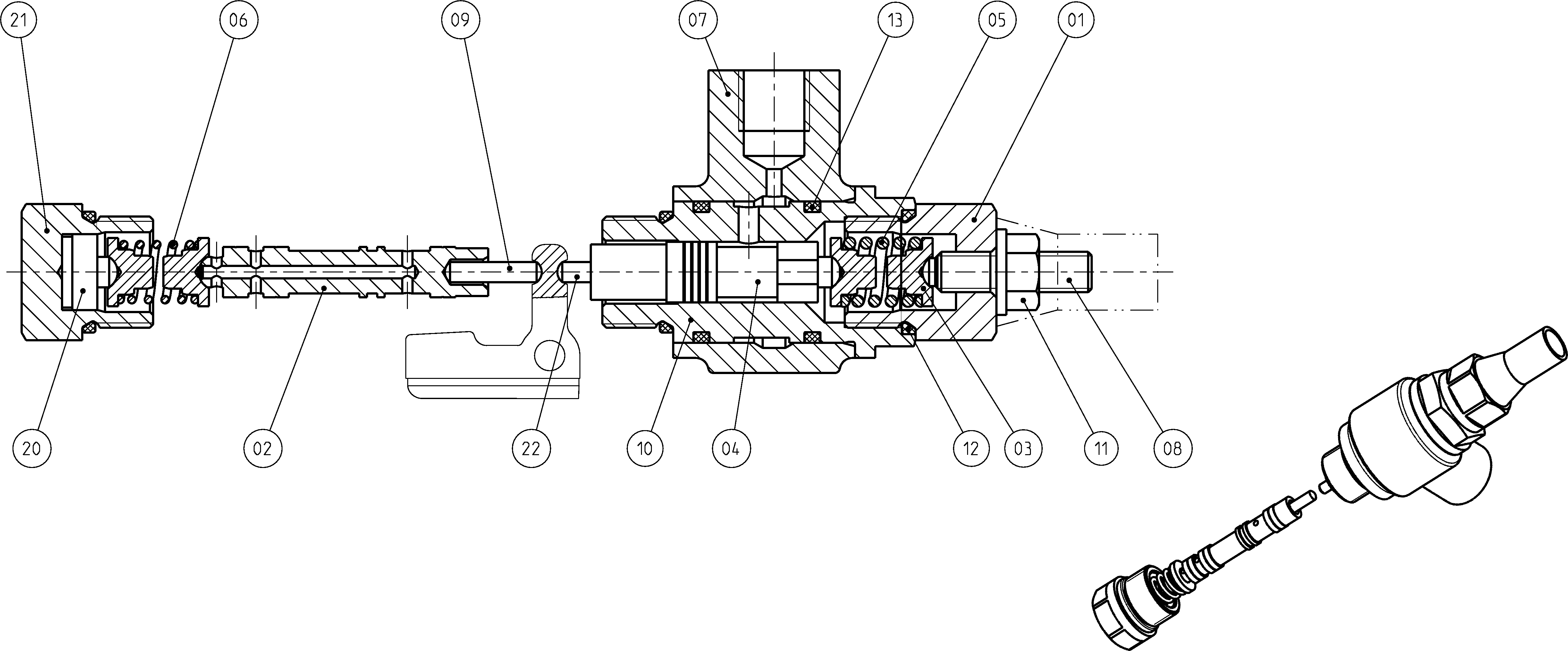

Assembly
CONTROL ELEMENTR902229775
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909440779 | SCREW PLUG | 1 | ||
| R902022771 | CONTROL PISTON | 1 | ||
| R902219980 | SPRING BOLT | 4 | ||
| R902224744 | CONTROL PISTON | 1 | ||
| 5 | R902012047 | COMPRESSION SPRING | 2 | |
| 7 | R909419399 | CONNECTING PIECE | 1 | |
| 8 | R909444953 | SETSCREW | 1 | |
| 9 | R902237857 | BOLT | 1 | |
| R902100935 | THREADED PART | 1 | ||
| R909152707 | SEALING NUTD | 1 | ||
| R909083758 | O-RINGD | 3 | ||
| R909083761 | O-RINGD | 2 | ||
| 14 | R909153799 | SHIM RING | 1 | |
| R909449633 | CENTERING BOLT | 1 | ||
| R909449632 | SCREW PLUG | 1 | ||
| R909440794 | BOLT | 1 |
