Assembly

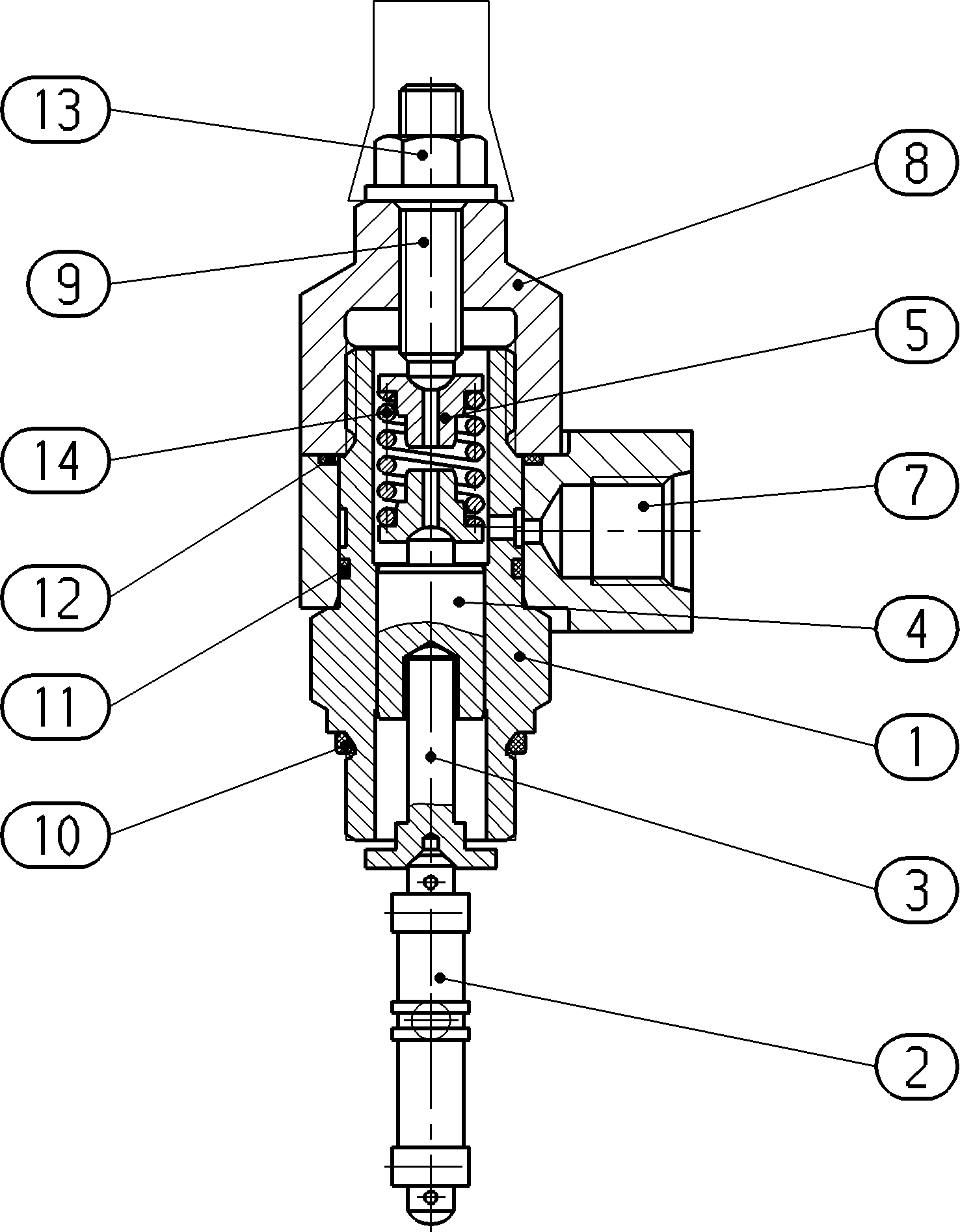

CONTROL ELEMENTR902229789
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909440420 | SCREW PLUG | 1 | ||
| R909432439 | CONTROL PISTON | 1 | ||
| R909435849 | BOLT | 1 | ||
| R909440423 | CONTROL PISTON | 1 | ||
| R902219980 | SPRING BOLT | 2 | ||
| R909444949 | CONNECTING PIECE | 1 | ||
| R909443508 | SCREW PLUG | 1 | ||
| R909440424 | SETSCREW | 1 | ||
| R909083758 | O-RINGD | 1 | ||
| R909086432 | O-RINGD | 1 | ||
| R909086520 | O-RINGD | 1 | ||
| R909152707 | SEALING NUTD | 1 | ||
| R902012047 | COMPRESSION SPRING | 1 |
