Assembly

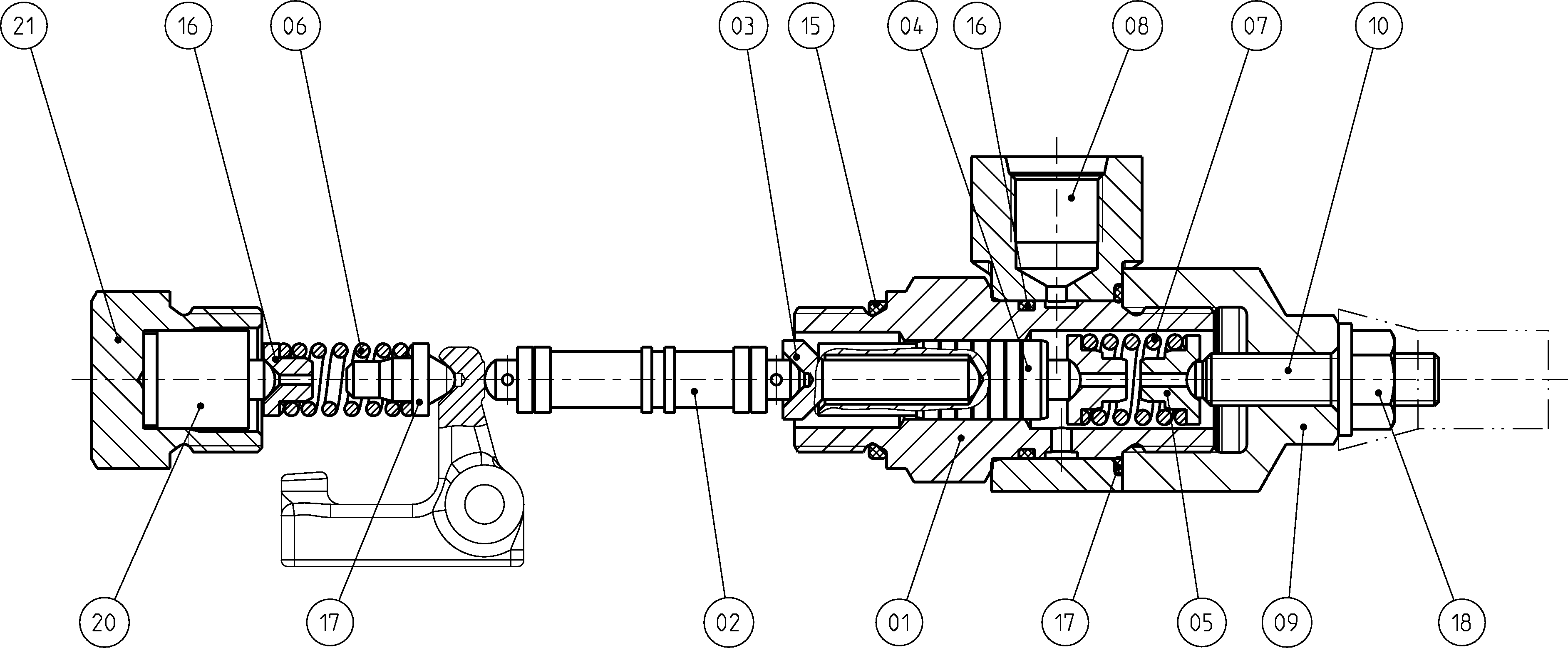

CONTROL ELEMENTR902229799
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902103881 | SCREW PLUG | 1 | ||
| 2 | R909432439 | CONTROL PISTON | 1 | |
| 3 | R909443708 | BOLT | 1 | |
| R902103884 | CONTROL PISTON | 1 | ||
| 5 | R902219980 | SPRING BOLT | 2 | |
| 6 | R909416364 | COMPRESSION SPRING | 1 | |
| R902012047 | COMPRESSION SPRING | 1 | ||
| 8 | R909444949 | CONNECTING PIECE | 1 | |
| 9 | R909443508 | SCREW PLUG | 1 | |
| R909440424 | SETSCREW | 1 | ||
| R909083758 | O-RINGD | 1 | ||
| R909445563 | SPRING DISK | 1 | ||
| — | O-RINGD | 1 | ||
| R909445556 | SPRING BOLT | 1 | ||
| R909086520 | O-RINGD | 1 | ||
| R909152707 | SEALING NUTD | 1 | ||
| R902106883 | CENTERING BOLT | 1 | ||
| R909449632 | SCREW PLUG | 1 |
