Assembly

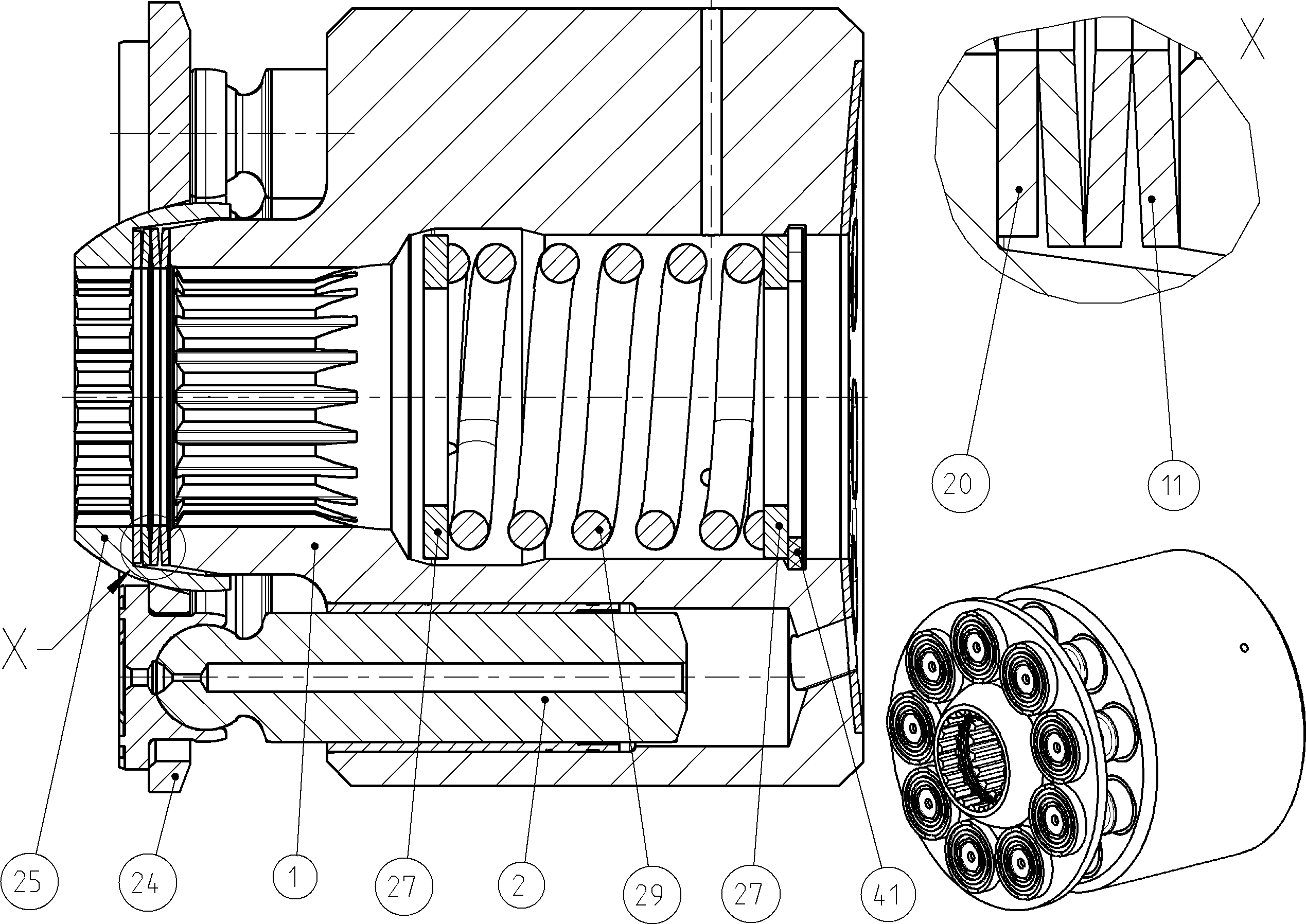

ROTARY GROUPR902230778
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902230774 | CYLINDER | 1 | ||
| R902118908 | PISTON PAD | 9 | ||
| R902127868 | CUP-SPRING STACK | 1 | ||
| R902094206 | SHIM RING | 1 | ||
| R902094207 | SHIM RING | 1 | ||
| R902094208 | SHIM RING | 1 | ||
| R902094209 | SHIM RING | 1 | ||
| R902205416 | RETAINING PLATE | 1 | ||
| R902240831 | RETAINING BALL | 1 | ||
| R902118731 | WASHER | 2 | ||
| R902118732 | COMPRESSION SPRING | 1 | ||
| R909083400 | RETAINING RING | 1 |
