Assembly

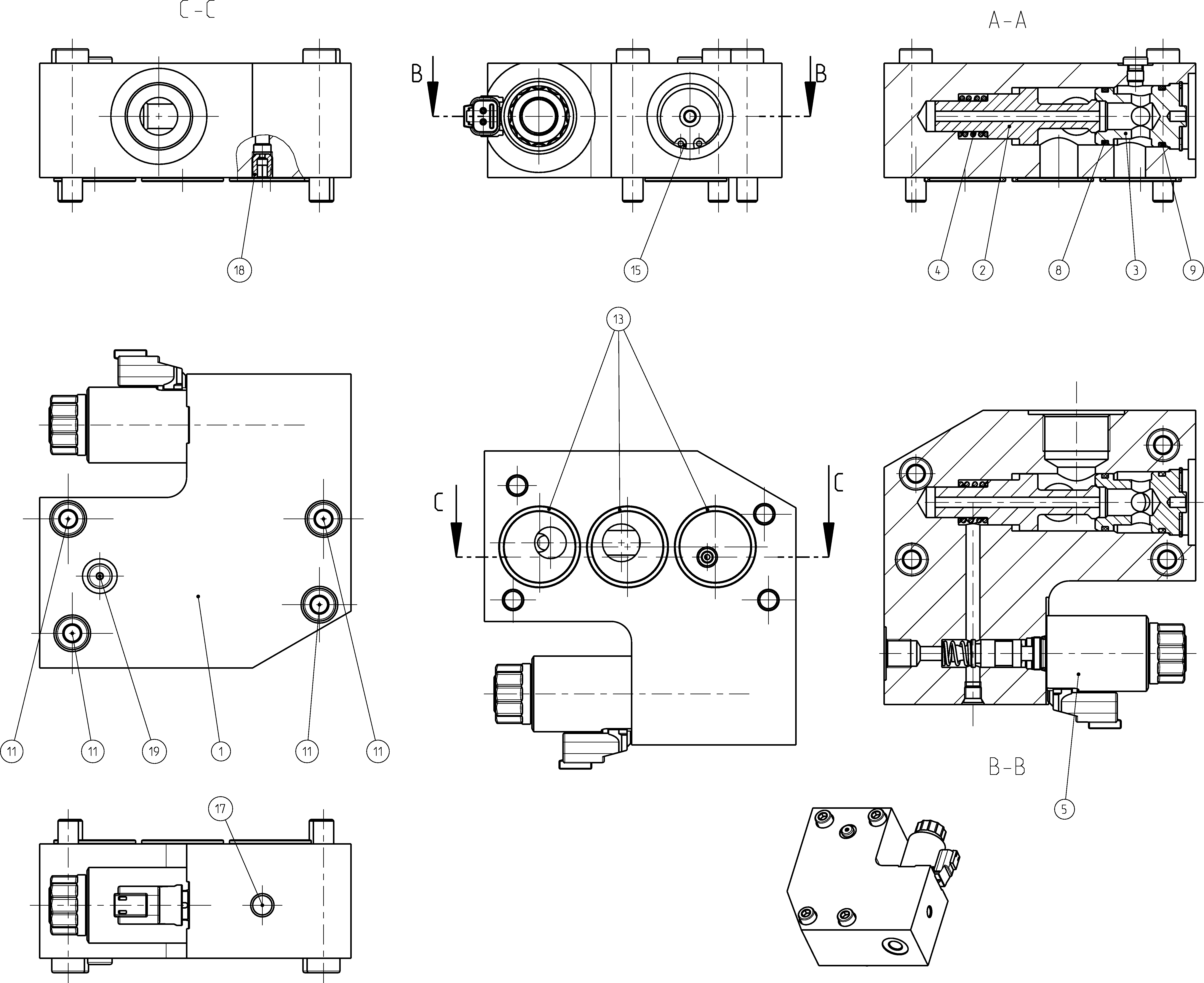

FILTERING PLATER902230967
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902230966 | VALVE BLOCK | 1 | ||
| R902226853 | VALVE SPOOL | 1 | ||
| R902226854 | VALVE SEAT | 1 | ||
| R902236651 | COMPRESSION SPRING | 1 | ||
| R902156920 | UNLOADING VALVE Assembly parts list →L | 1 | ||
| R909083761 | O-RINGD | 1 | ||
| R909083763 | O-RINGD | 1 | ||
| R909083070 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083769 | O-RINGD | 3 | ||
| R909083394 | RETAINING RING | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909426706 | NOZZLE | 1 | ||
| R909154024 | SCREW PLUG | 1 |
