Assembly

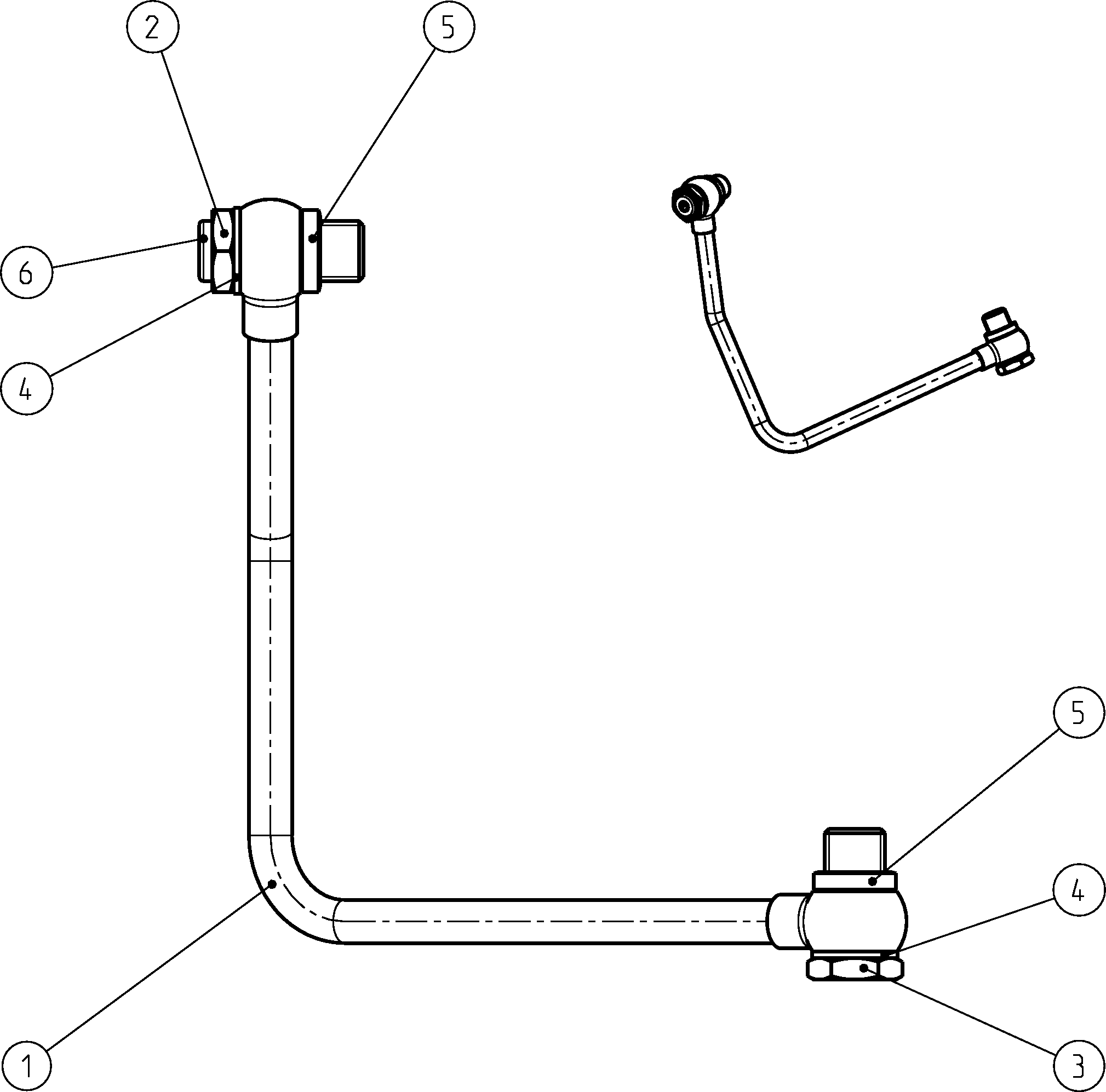

HYDRAULIC LINER902232247
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902232246 | PIPE Assembly parts list →L | 1 | ||
| R909405786 | HOLLOW BOLT | 1 | ||
| R909074400 | HOLLOW BOLT | 1 | ||
| R909153218 | GASKET RINGD | 2 | ||
| R909084037 | SEAL RINGD | 2 | ||
| R909153364 | SCREW PLUG | 1 |
Assembly
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902232246 | PIPE Assembly parts list →L | 1 | ||
| R909405786 | HOLLOW BOLT | 1 | ||
| R909074400 | HOLLOW BOLT | 1 | ||
| R909153218 | GASKET RINGD | 2 | ||
| R909084037 | SEAL RINGD | 2 | ||
| R909153364 | SCREW PLUG | 1 |
