Assembly

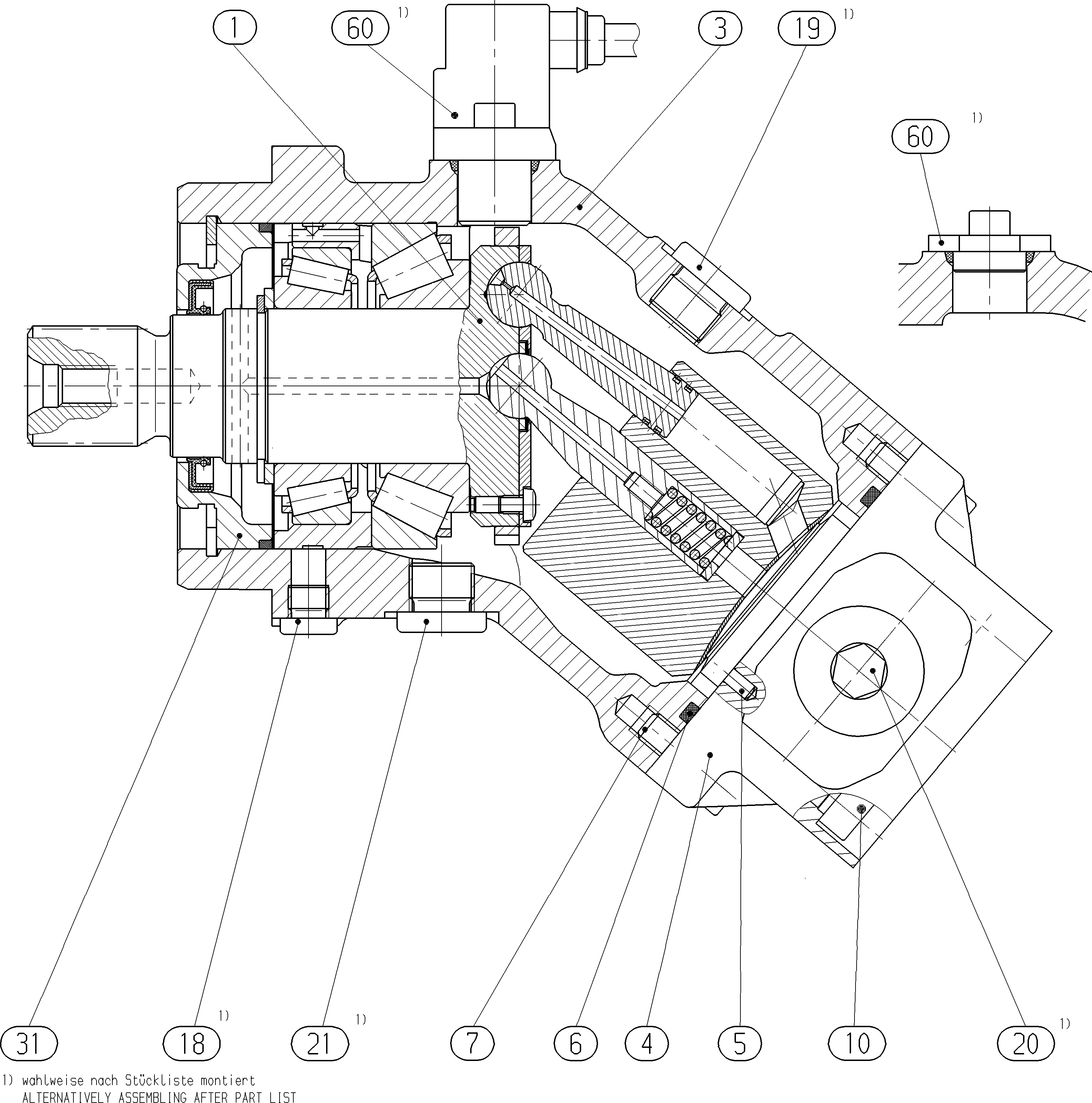

AXIAL-PISTON PUMPR902235358
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902034167 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902042266 | HOUSING | 1 | ||
| R909422517 | CONNECTION PLATE | 1 | ||
| R909087018 | STRAIGHT PIN | 1 | ||
| R909152496 | O-RINGD | 1 | ||
| R909083036 | SOCKET HEAD CAP SCREW | 2 | ||
| R909083044 | SOCKET HEAD CAP SCREW | 4 | ||
| R909156649 | SCREW PLUGD | 1 | ||
| R909156864 | SCREW PLUGD | 1 | ||
| R902138436 | LOCKING RING Assembly parts list →L | 1 |
