Assembly

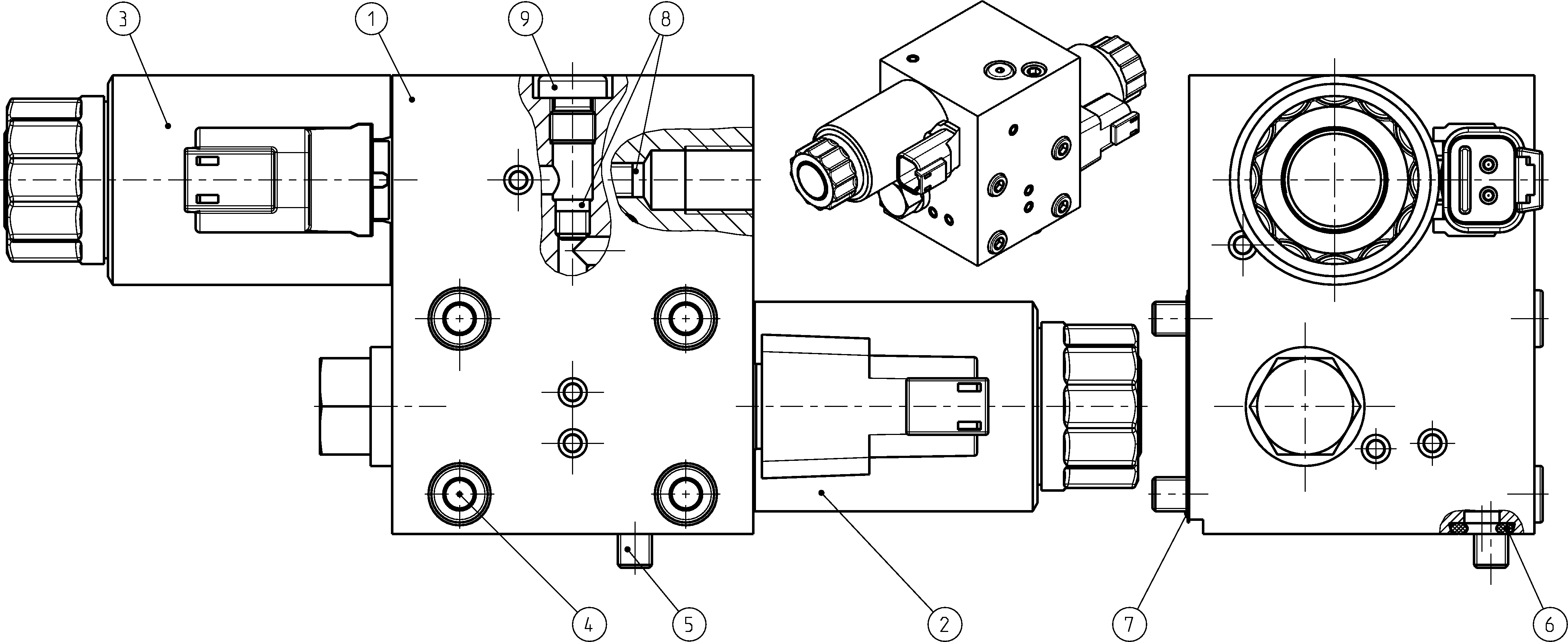

CONTROL MODULER902236122
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902236120 | VALVE HOUSING Assembly parts list →L | 1 | ||
| R902601999 | SWITCHING SOLENOID | 1 | ||
| R902603443 | PROPORTIONAL SOLENOID | 1 | ||
| R913041241 | SOCKET HEAD CAP SCREW | 4 | ||
| R909085701 | SOCKET HEAD CAP SCREW | 1 | ||
| R909157512 | O-RING | 1 | ||
| R902603829 | SEAL | 1 | ||
| R909156492 | NOZZLE | 2 | ||
| R909154024 | SCREW PLUG | 1 |
