Assembly

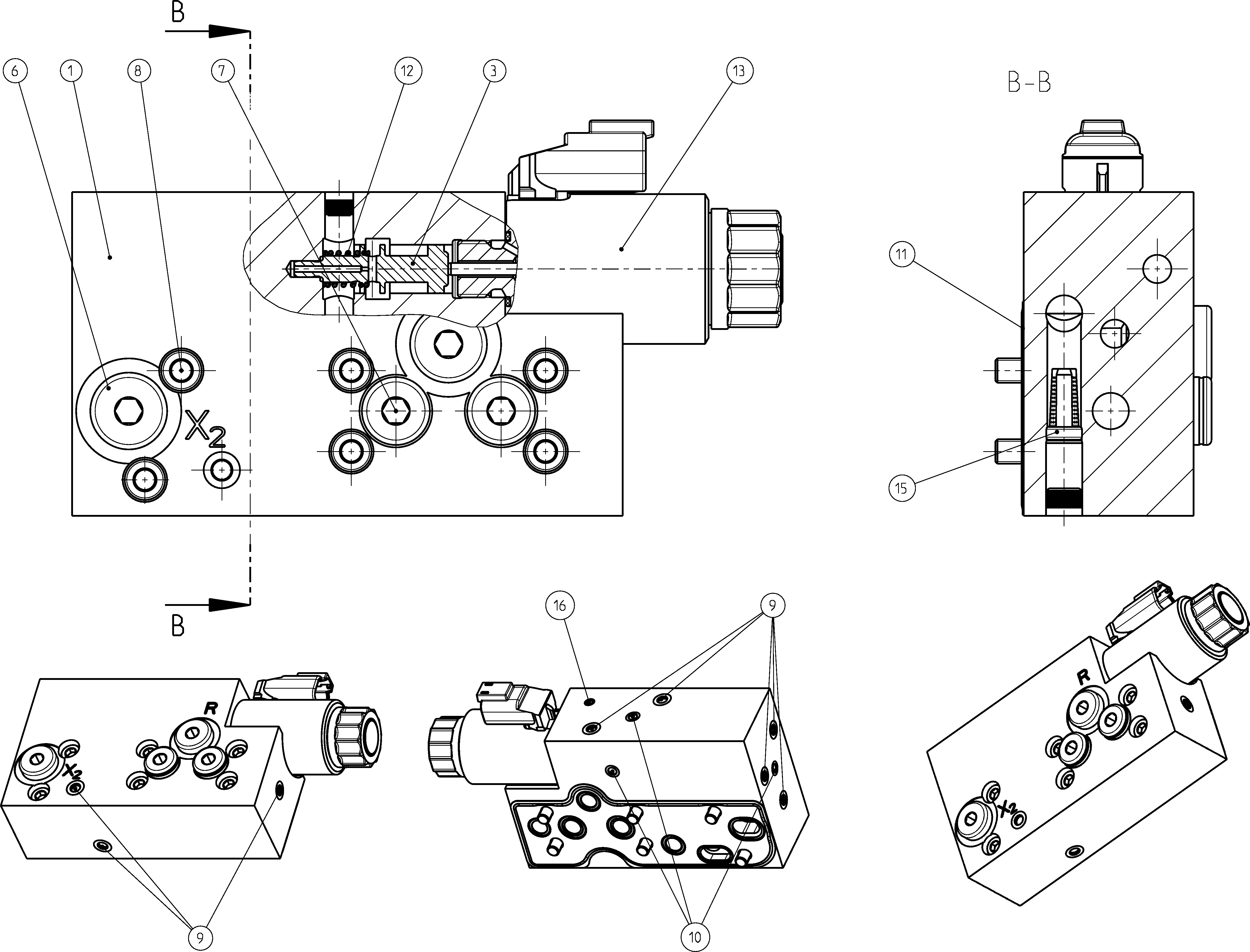

PRESSURE REDUCING VALVER902236340
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902236339 | VALVE HOUSING | 1 | ||
| R902190773 | CONTROL PISTON | 1 | ||
| R909151979 | SCREW PLUG | 2 | ||
| R909831743 | SCREW PLUG | 2 | ||
| R902603137 | SOCKET HEAD CAP SCREW | 6 | ||
| R902603691 | SEALING PLUG | 8 | ||
| R902603686 | SEALING PLUG | 3 | ||
| R913005554 | SEAL | 1 | ||
| R902239332 | COMPRESSION SPRING | 1 | ||
| R902603443 | PROPORTIONAL SOLENOID | 1 | ||
| R902603777 | FILTER | 1 | ||
| R902603684 | SEALING PLUG | 1 |
