Assembly

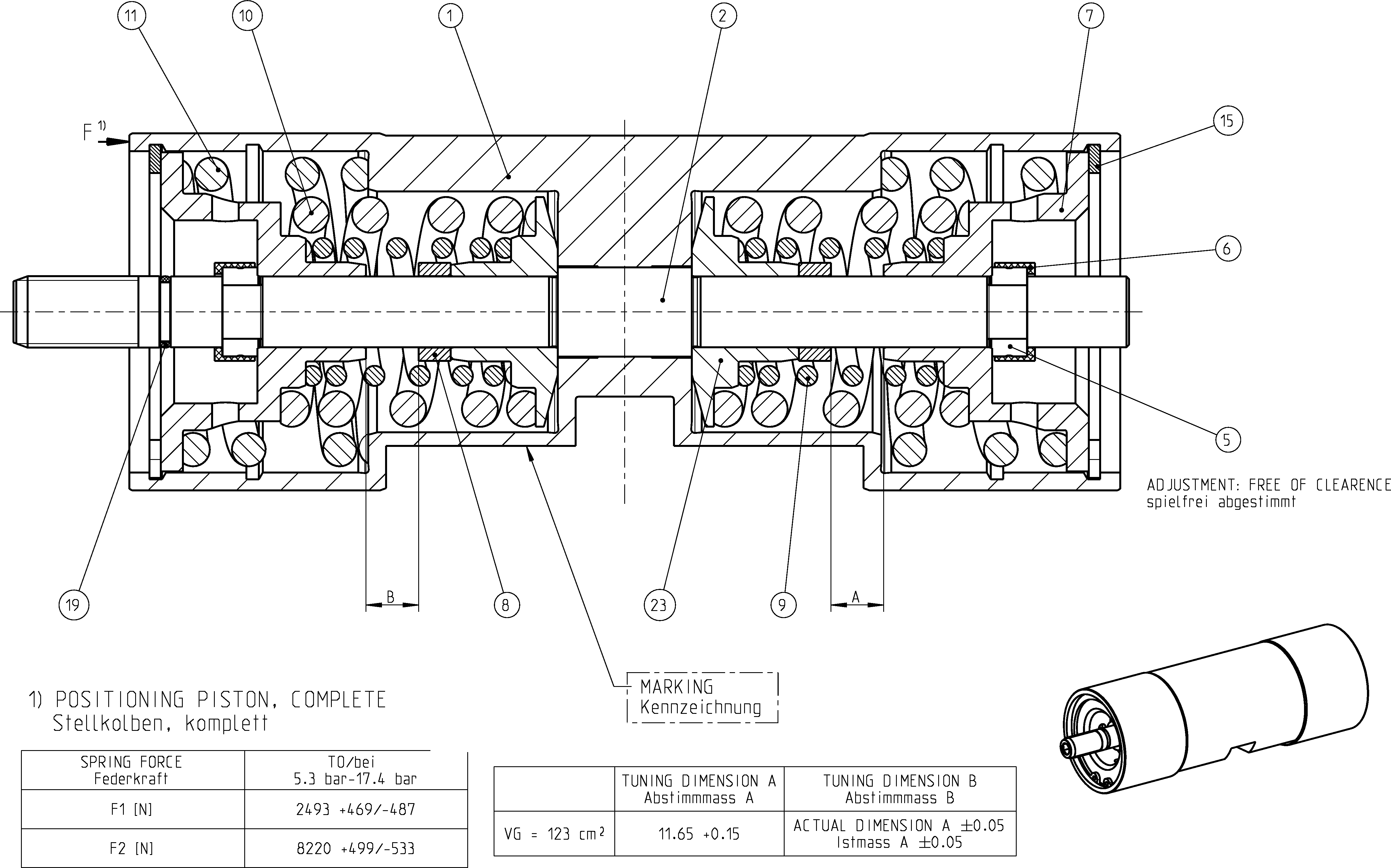

POSITIONING PISTONR902236749
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902213481 | POSITIONING PISTON | 1 | ||
| R909449241 | ROD | 1 | ||
| R902020493 | RING | 2 | ||
| R902020494 | RING | 2 | ||
| R902020495 | RING | 2 | ||
| R902020496 | RING | 2 | ||
| R902020497 | RING | 2 | ||
| R902020498 | RING | 2 | ||
| R902029756 | RING | 2 | ||
| R902029757 | RING | 2 | ||
| R902043149 | RING | 2 | ||
| R902600767 | LOCATING RING | 2 | ||
| R909449251 | SPRING DISK | 2 | ||
| R902236746 | SHIM RING | 2 | ||
| R902236747 | SHIM RING | 2 | ||
| R902236748 | SHIM RING | 2 | ||
| R909435004 | COMPRESSION SPRING | 2 | ||
| R909435005 | COMPRESSION SPRING | 2 | ||
| R909435006 | COMPRESSION SPRING | 2 | ||
| R909083412 | RETAINING RING | 2 | ||
| R909086333 | O-RINGD | 1 | ||
| R909449252 | SPRING DISK | 2 |
