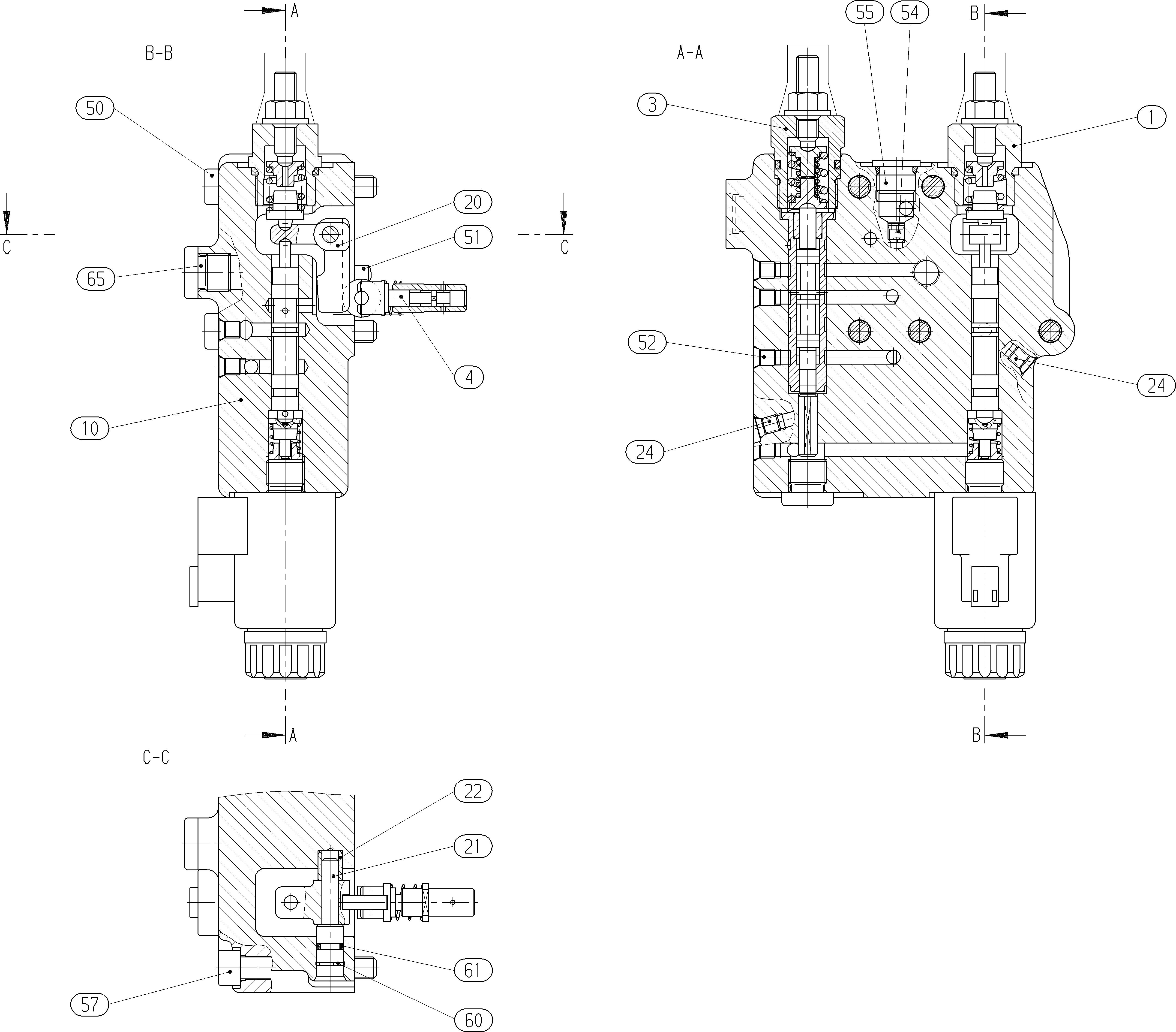

Assembly
REGULATORR902237686
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902237914 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| R902062620 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| R909922124 | MEASURING PISTON Assembly parts list →L | 1 | ||
| R902232102 | CONTROL HOUSING | 1 | ||
| R902122300 | ANGLE LEVER | 1 | ||
| R909440788 | BEARING BOLT | 1 | ||
| R909431286 | BUSHING | 1 | ||
| R909445306 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909083044 | SOCKET HEAD CAP SCREW | 1 | ||
| R913009676 | STRAIGHT PIN | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 8 | ||
| R909156490 | NOZZLE | 1 | ||
| R909153371 | SCREW PLUG | 1 | ||
| R909083045 | SOCKET HEAD CAP SCREW | 4 | ||
| R909087248 | RETAINING RING | 1 | ||
| R913045130 | O-RING | 1 | ||
| 98 | R902002475 | SEAL KIT | 1 |
