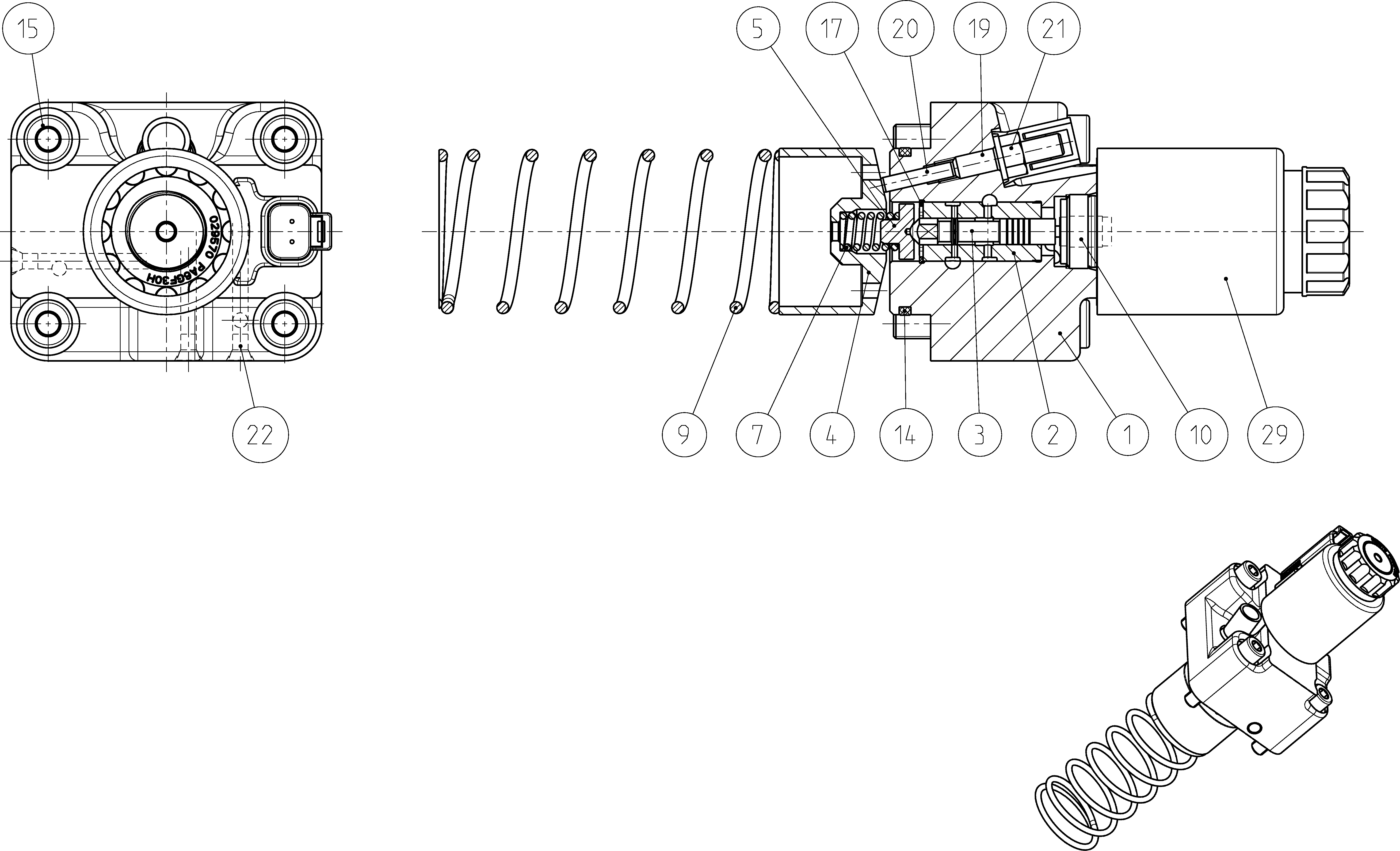

Assembly
CONTROL PARTR902238315
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902238317 | CONTROL HOUSING | 1 | ||
| R909432662 | CONTROL SLEEVE | 1 | ||
| R902006956 | CONTROL PISTON | 1 | ||
| R909651119 | ADJUSTING BUSHING | 1 | ||
| R909921339 | SPRING DISK | 1 | ||
| R909921419 | COMPRESSION SPRING | 1 | ||
| R909921342 | COMPRESSION SPRING | 1 | ||
| R909650196 | BUSHING | 1 | ||
| R909085560 | O-RINGD | 1 | ||
| R909087243 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083381 | RETAINING RING | 1 | ||
| R909152427 | SETSCREW | 1 | ||
| R909087165 | STRAIGHT PIN | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R902603771 | SWITCHING SOLENOID | 1 |
