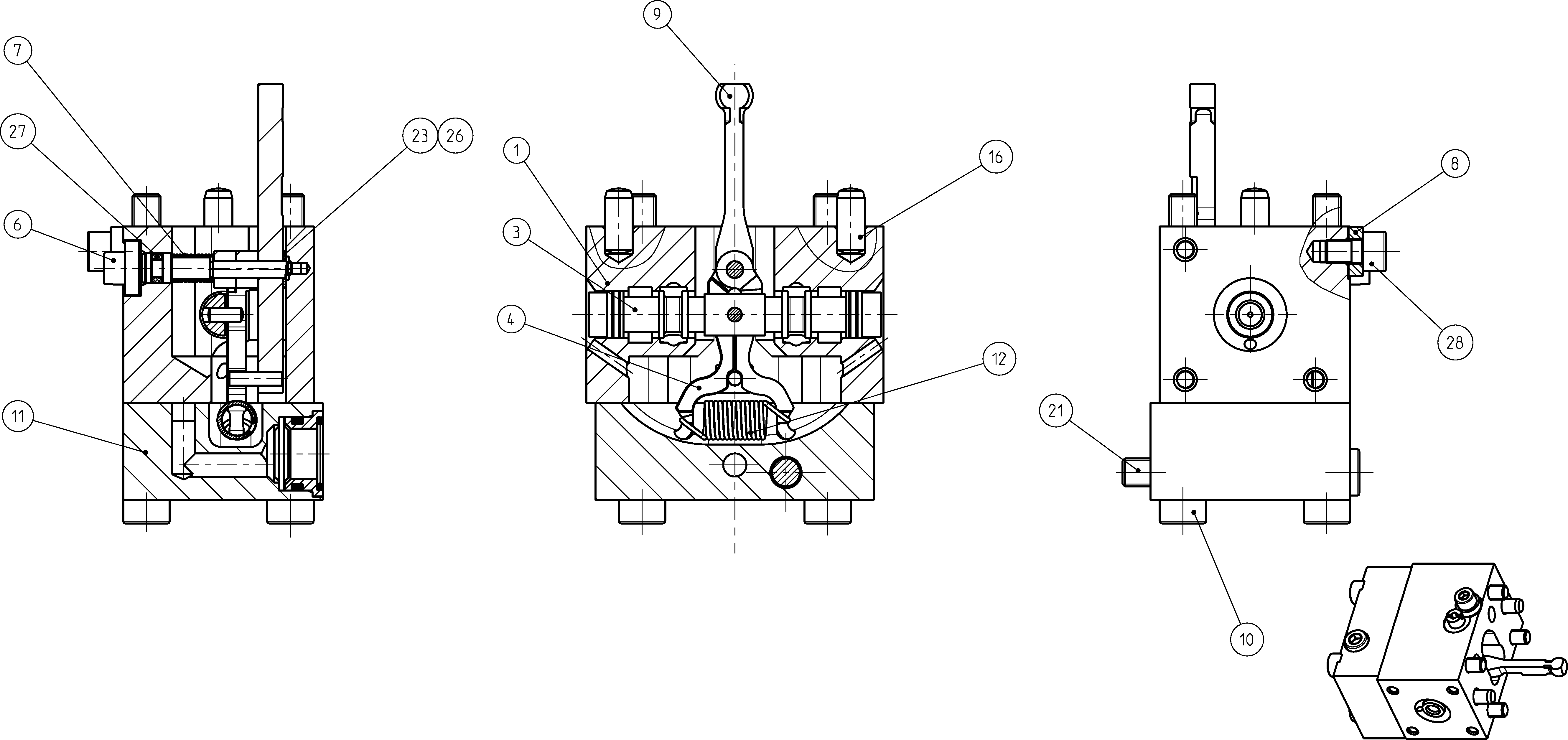

Assembly
BASIC UNITR902239067
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902206060 | HOUSING | 1 | ||
| R902206370 | CONTROL PISTON | 1 | ||
| R902162699 | LEVER PAIR | 1 | ||
| R902197162 | ECCENTRIC PIN | 1 | ||
| R902068165 | COMPRESSION SPRING | 1 | ||
| R902044854 | WASHER | 1 | ||
| R902113674 | FEEDBACK LEVER | 1 | ||
| R909085831 | SOCKET HEAD CAP SCREW | 4 | ||
| R902107492 | COVER | 1 | ||
| R902083812 | EXTENSION SPRING | 1 | ||
| R913009677 | STRAIGHT PIN | 2 | ||
| R909083027 | SOCKET HEAD CAP SCREW | 1 | ||
| R902051252 | WASHER | 1 | ||
| R902051253 | WASHER | 1 | ||
| R902051254 | WASHER | 1 | ||
| R902051255 | WASHER | 1 | ||
| R902051256 | WASHER | 1 | ||
| R902064222 | WASHER | 1 | ||
| R902105435 | WASHER | 1 | ||
| R902105436 | WASHER | 1 | ||
| R902105437 | WASHER | 1 | ||
| R902105438 | WASHER | 1 | ||
| R902105439 | WASHER | 1 | ||
| R902105440 | WASHER | 1 | ||
| R909086301 | O-RING | 1 | ||
| R902601243 | SOCKET HEAD CAP SCREW | 1 |
