Assembly

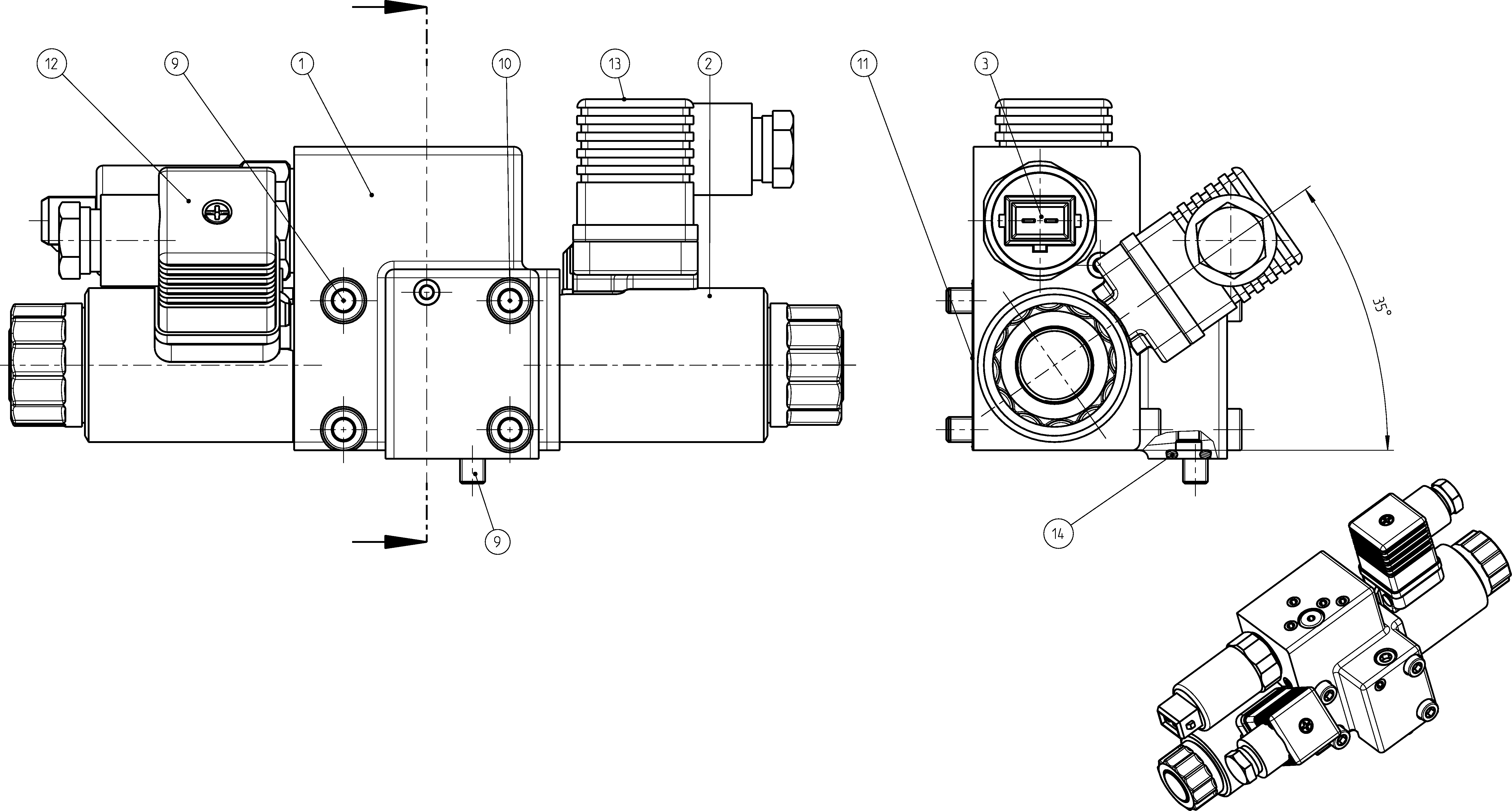

DIRECTIONAL-CONTROL VALVER902239142
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902156903 | VALVE HOUSING Assembly parts list →L | 1 | ||
| R902602669 | SWITCHING SOLENOID | 2 | ||
| R901155050 | PRESSURE REDUCING VALVE | 1 | ||
| R909083027 | SOCKET HEAD CAP SCREW | 3 | ||
| R909085831 | SOCKET HEAD CAP SCREW | 2 | ||
| R902603829 | SEAL | 1 | ||
| R913022796 | PLUG-IN CONNECTOR | 1 | ||
| R913022795 | PLUG-IN CONNECTOR | 1 | ||
| R909157512 | O-RING | 1 |
