Assembly

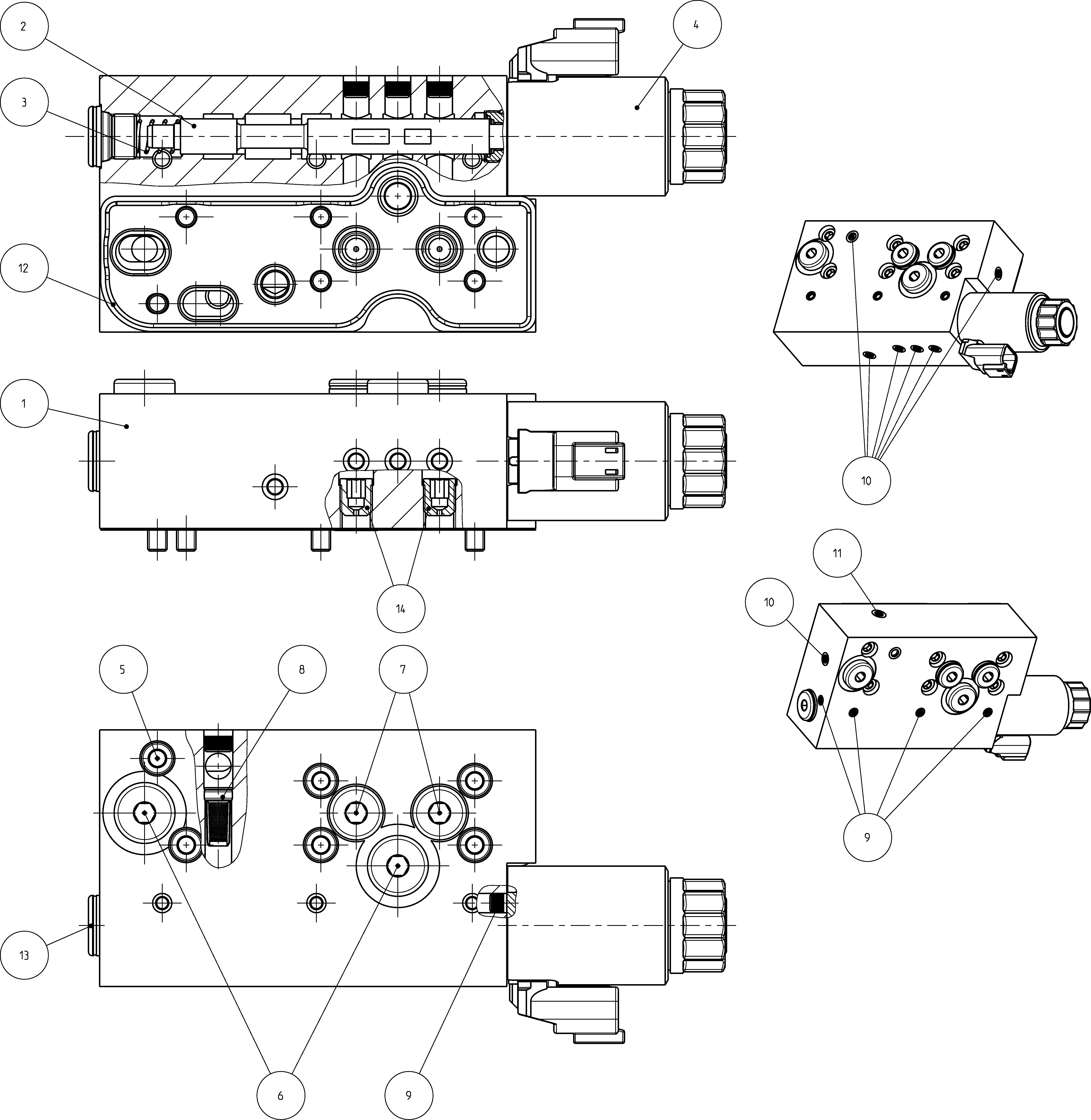

UNLOADING VALVER902239161
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902254574 | VALVE HOUSING | 1 | ||
| R902228687 | VALVE SPOOL | 1 | ||
| R902107242 | COMPRESSION SPRING | 1 | ||
| R902602691 | SWITCHING SOLENOID | 1 | ||
| R902603137 | SOCKET HEAD CAP SCREW | 6 | ||
| R909151979 | SCREW PLUG | 2 | ||
| R902602898 | SCREW PLUG | 2 | ||
| R902603777 | FILTER | 1 | ||
| R902603685 | SEALING PLUG | 5 | ||
| R902603687 | SEALING PLUG | 7 | ||
| R902603691 | SEALING PLUG | 1 | ||
| R913005554 | SEAL | 1 | ||
| R902603130 | SCREW PLUG | 1 | ||
| R909832018 | NOZZLE | 2 |
