Assembly

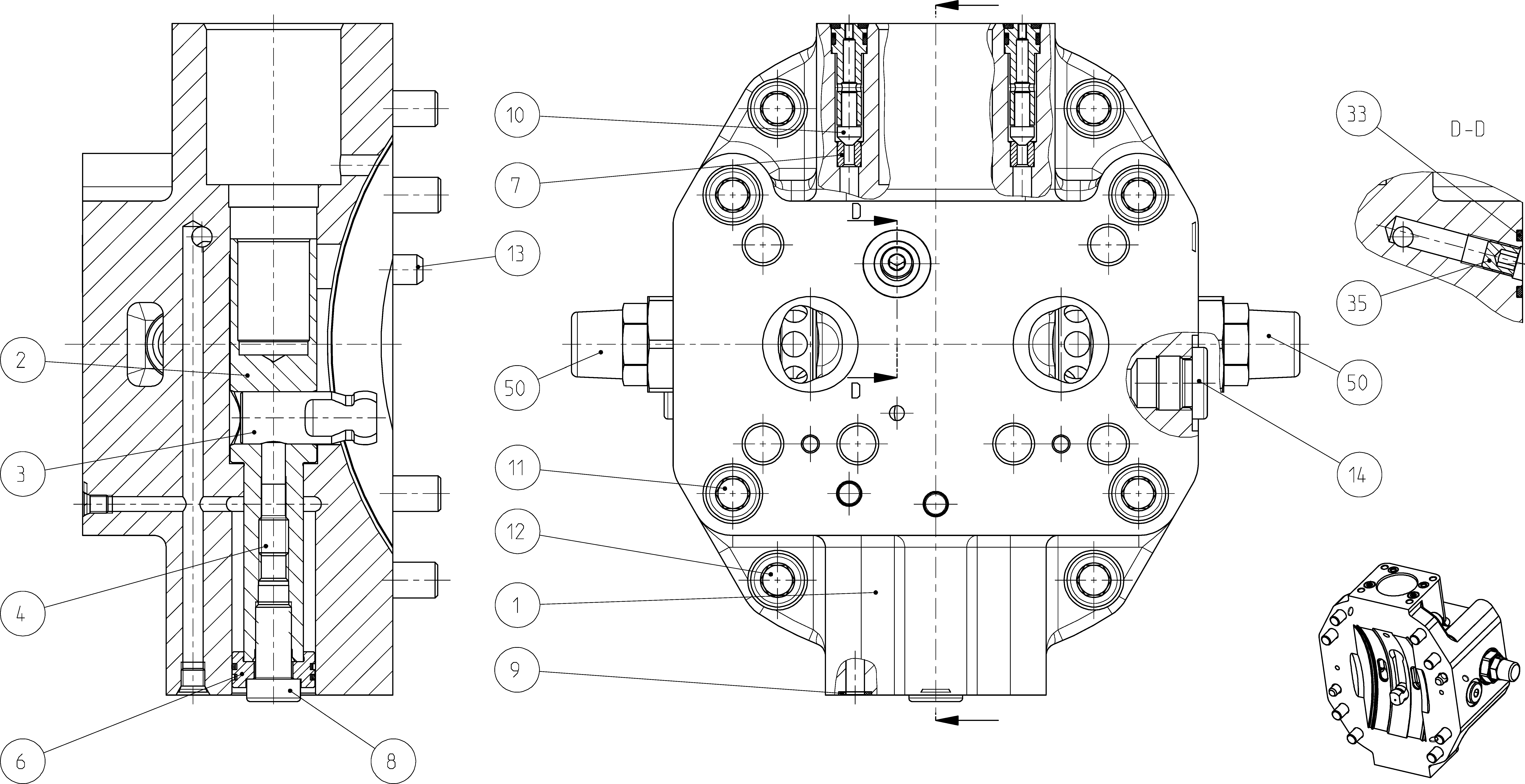

COVER PLATER902241003
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902241004 | COVER PLATE | 1 | ||
| R902101484 | POSITIONING PISTON | 1 | ||
| R909422217 | POSITIONING STUD | 1 | ||
| R902101485 | SETSCREW | 1 | ||
| R902102903 | PISTON | 1 | ||
| R902209845 | BUSHING | 2 | ||
| R909083204 | SOCKET HEAD CAP SCREW | 1 | ||
| R909085577 | O-RINGD | 3 | ||
| R902096781 | CHECK VALVE | 2 | ||
| R913068738 | SOCKET HEAD CAP SCREW | 4 | ||
| R913068734 | SOCKET HEAD CAP SCREW | 4 | ||
| R913009669 | STRAIGHT PIN | 2 | ||
| R902601709 | SCREW PLUGD | 2 | ||
| R909087938 | O-RINGD | 1 | ||
| R902216405 | PLUG | 1 | ||
| R902603807 | DELIVERY-VALVE ASSEMBLY Assembly parts list →L | 2 |
