Assembly

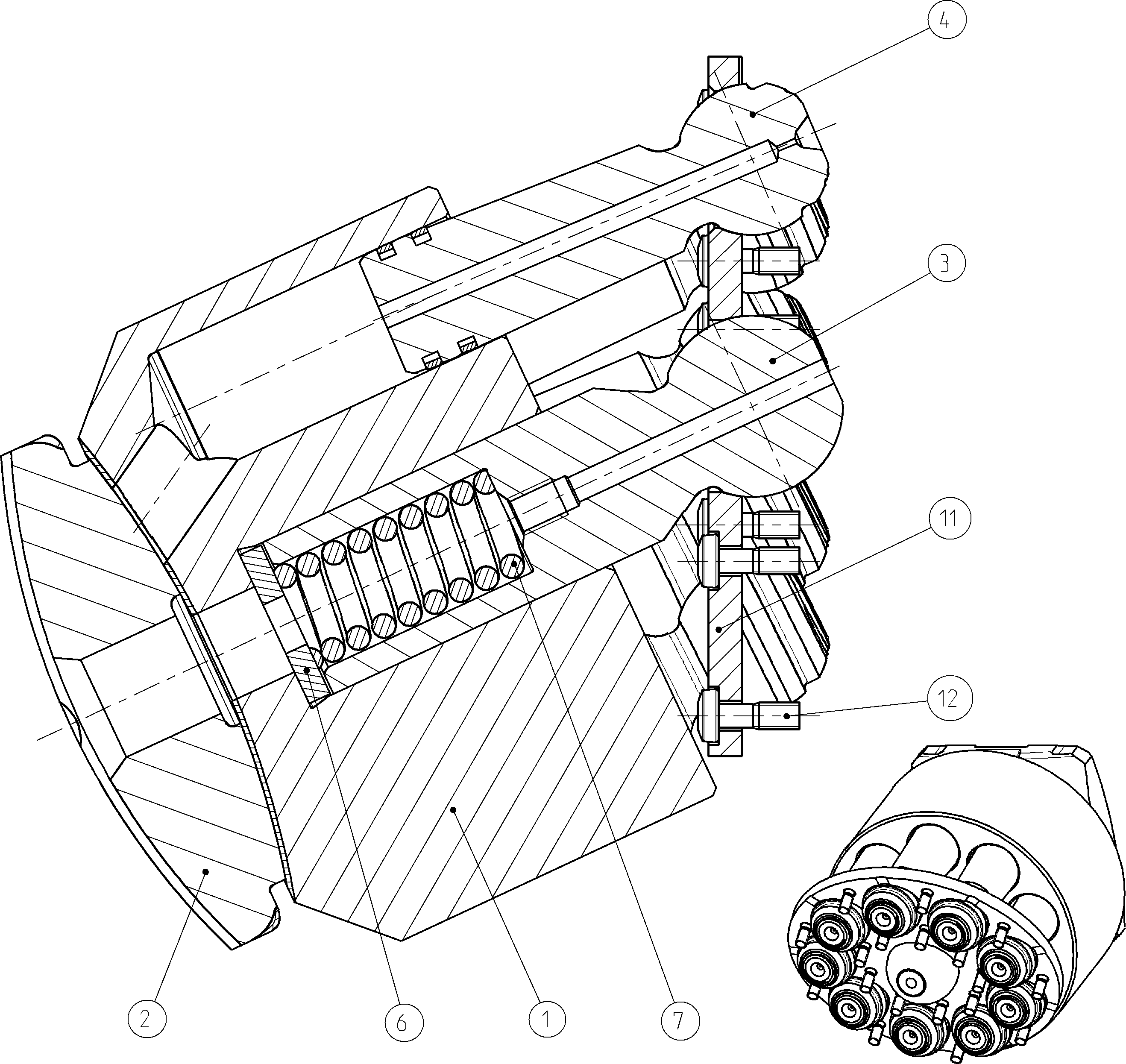

ROTARY GROUPR902242533
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902203998 | CYLINDER | 1 | ||
| R902242532 | CONTROL LENS, LEFT-HAND ROTATION | 1 | ||
| R902117882 | CENTER PIN | 1 | ||
| R902107646 | PISTON | 9 | ||
| R902078725 | ADJUSTMENT SHIM Assembly parts list →L | 1 | ||
| R902014282 | COMPRESSION SPRING | 1 | ||
| R902246199 | RETAINING PLATE | 1 | ||
| R902602776 | PAN-HEAD SCREW | 18 |
