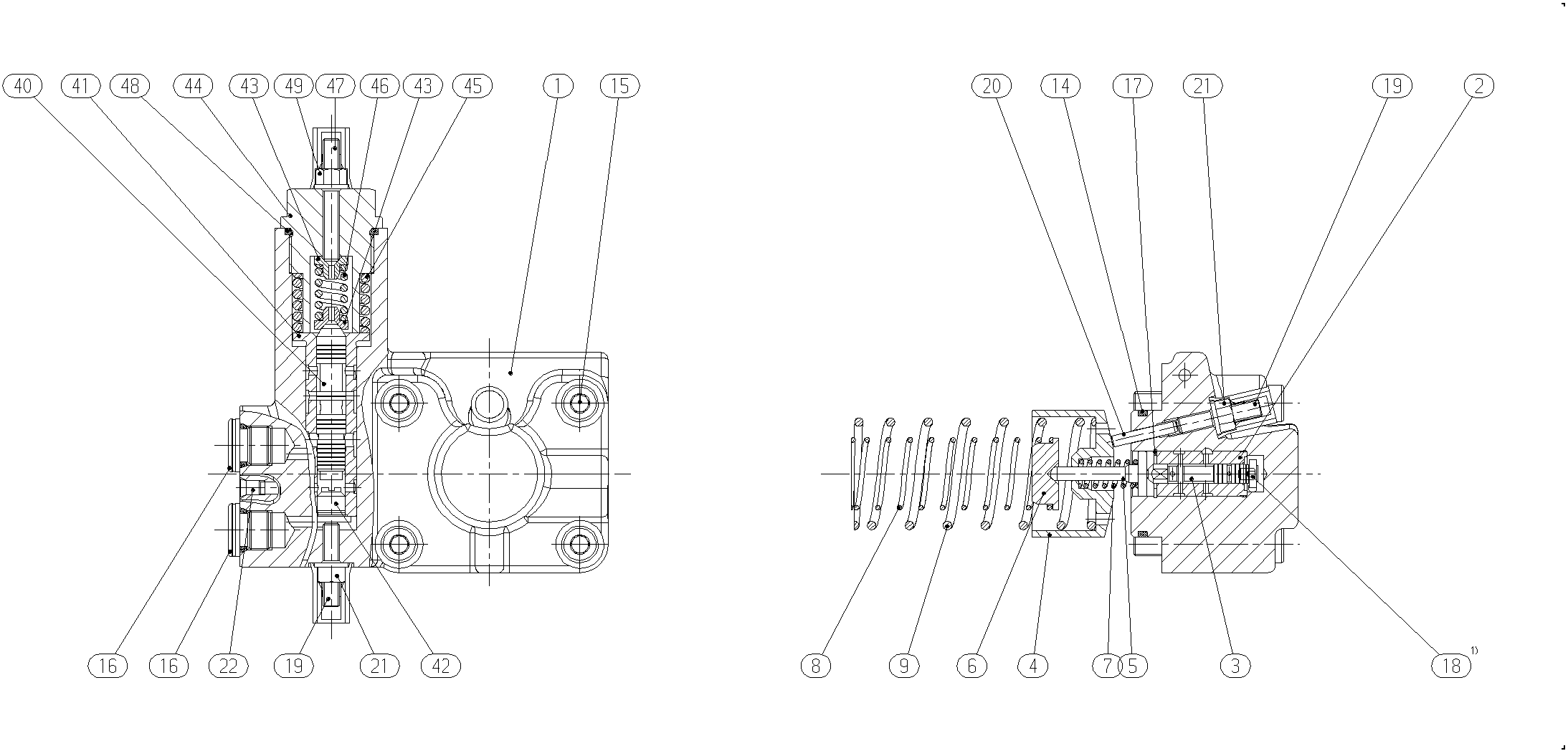

Assembly
CONTROL PARTR902242874
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902248615 | CONTROL HOUSING | 1 | ||
| R902132338 | CONTROL SLEEVE | 1 | ||
| R902132349 | CONTROL PISTON | 1 | ||
| R909651119 | ADJUSTING BUSHING | 1 | ||
| R909921351 | SPRING DISK | 1 | ||
| R909413198 | SPRING DISK | 1 | ||
| R909921420 | COMPRESSION SPRING | 1 | ||
| R909431104 | COMPRESSION SPRING | 1 | ||
| R909651117 | COMPRESSION SPRING | 1 | ||
| R909157562 | O-RINGD | 1 | ||
| R909087243 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831482 | SCREW PLUGD | 2 | ||
| R909083381 | RETAINING RING | 1 | ||
| R902216406 | PLUG | 1 | ||
| R909152427 | SETSCREW | 2 | ||
| R909087756 | STRAIGHT PIN | 1 | ||
| R909152425 | SEALING NUTD | 2 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 4 | ||
| R902248587 | CONTROL PISTON | 1 | ||
| R902248524 | CONTROL SLEEVE | 1 | ||
| R909419893 | BOLT | 1 | ||
| R909075975 | SPRING DISK | 2 | ||
| R909444358 | SCREW PLUG | 1 | ||
| R909414209 | COMPRESSION SPRING | 1 | ||
| R909420239 | COMPRESSION SPRING | 1 | ||
| R909830899 | SETSCREW | 1 | ||
| R909157273 | O-RINGD | 1 | ||
| R909157764 | SEALING NUT | 1 |
