Assembly

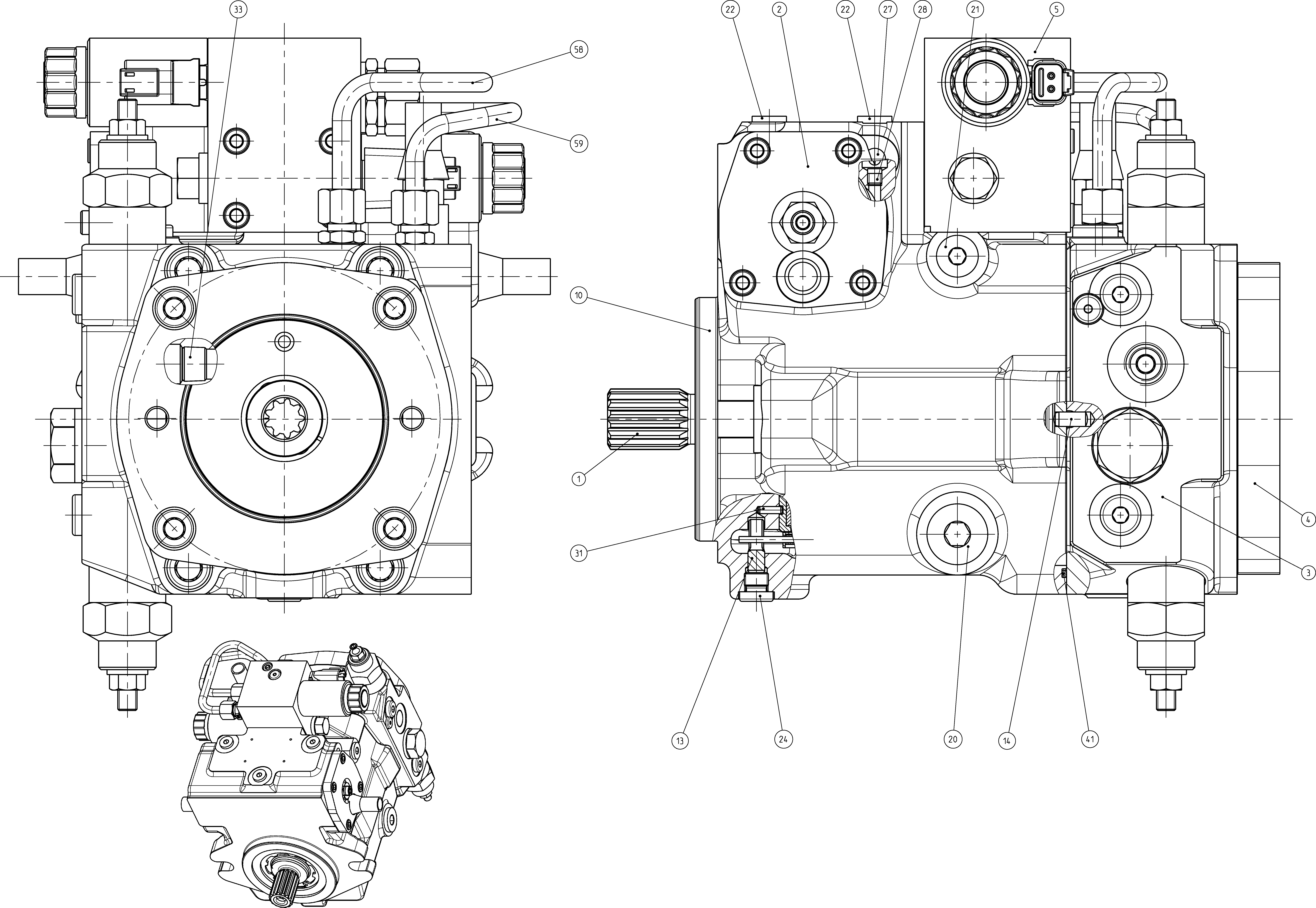

AXIAL-PISTON PUMPR902243118
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902100560 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902009490 | CONTROL Assembly parts list →L | 1 | ||
| R902240774 | CONNECTION PLATE | 1 | ||
| R909602830 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R902236473 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902015639 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 1 | ||
| R913009677 | STRAIGHT PIN | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 3 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909156493 | NOZZLE | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909087912 | SCREW PLUG | 1 | ||
| R909085364 | O-RINGD | 1 | ||
| R902240725 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| R902240720 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| 98 | R902095615 | SEAL KIT | 1 |
