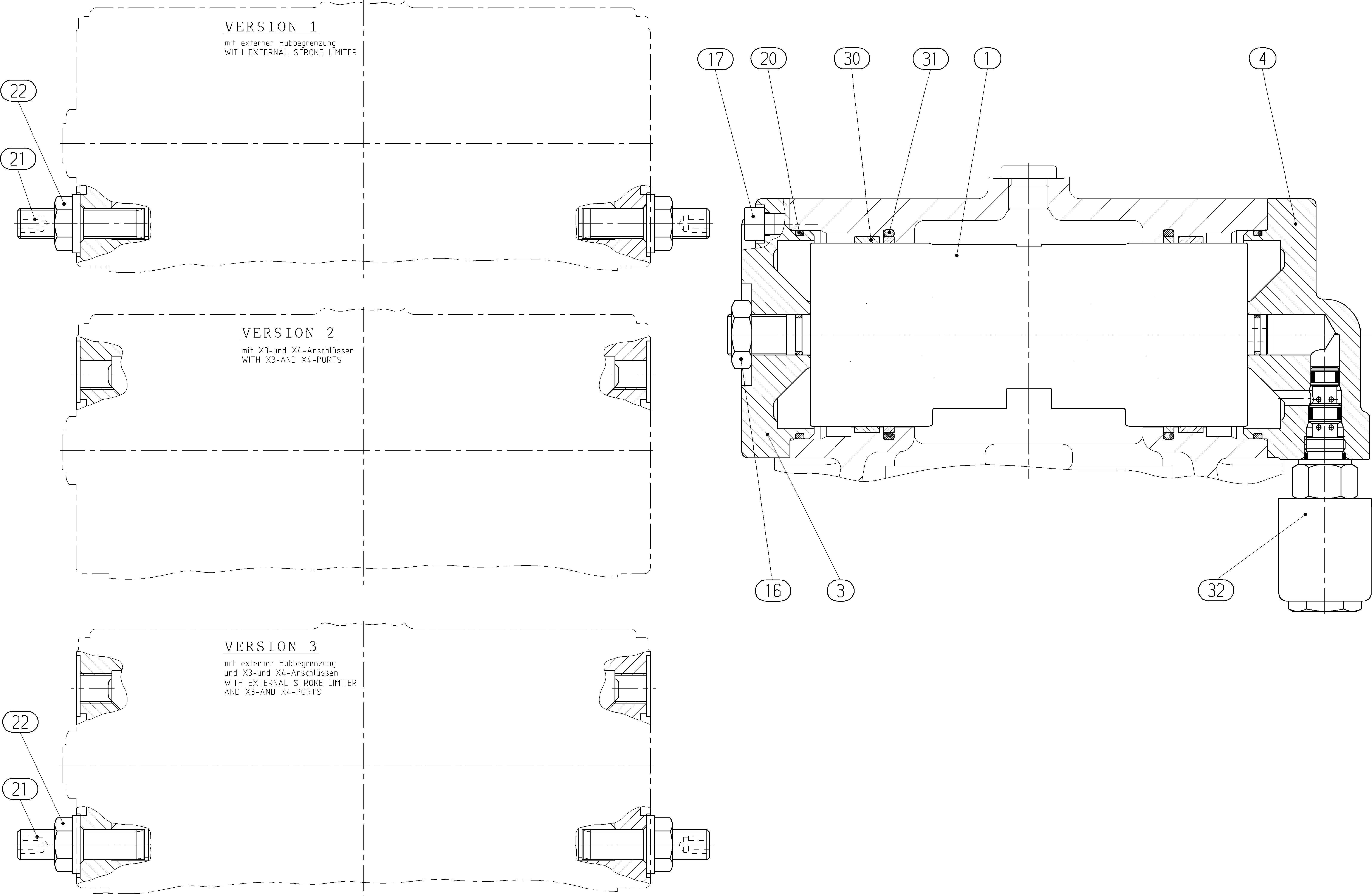

Assembly
CONTROLR902243935
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902025532 | POSITIONING PISTON Assembly parts list →L | 1 | ||
| R902010621 | COVER | 1 | ||
| R902062278 | COVER | 1 | ||
| R909157477 | HEXAGON NUT | 1 | ||
| R909083036 | SOCKET HEAD CAP SCREW | 8 | ||
| R909083790 | O-RINGD | 2 | ||
| R902600838 | ROD GUIDANCE RING | 2 | ||
| R902600270 | ROD SEALD | 2 | ||
| R902603288 | SLIDE GATE VALVE Assembly parts list →L | 1 | ||
| 98 | R902002373 | SEAL KIT | 1 |
