Assembly

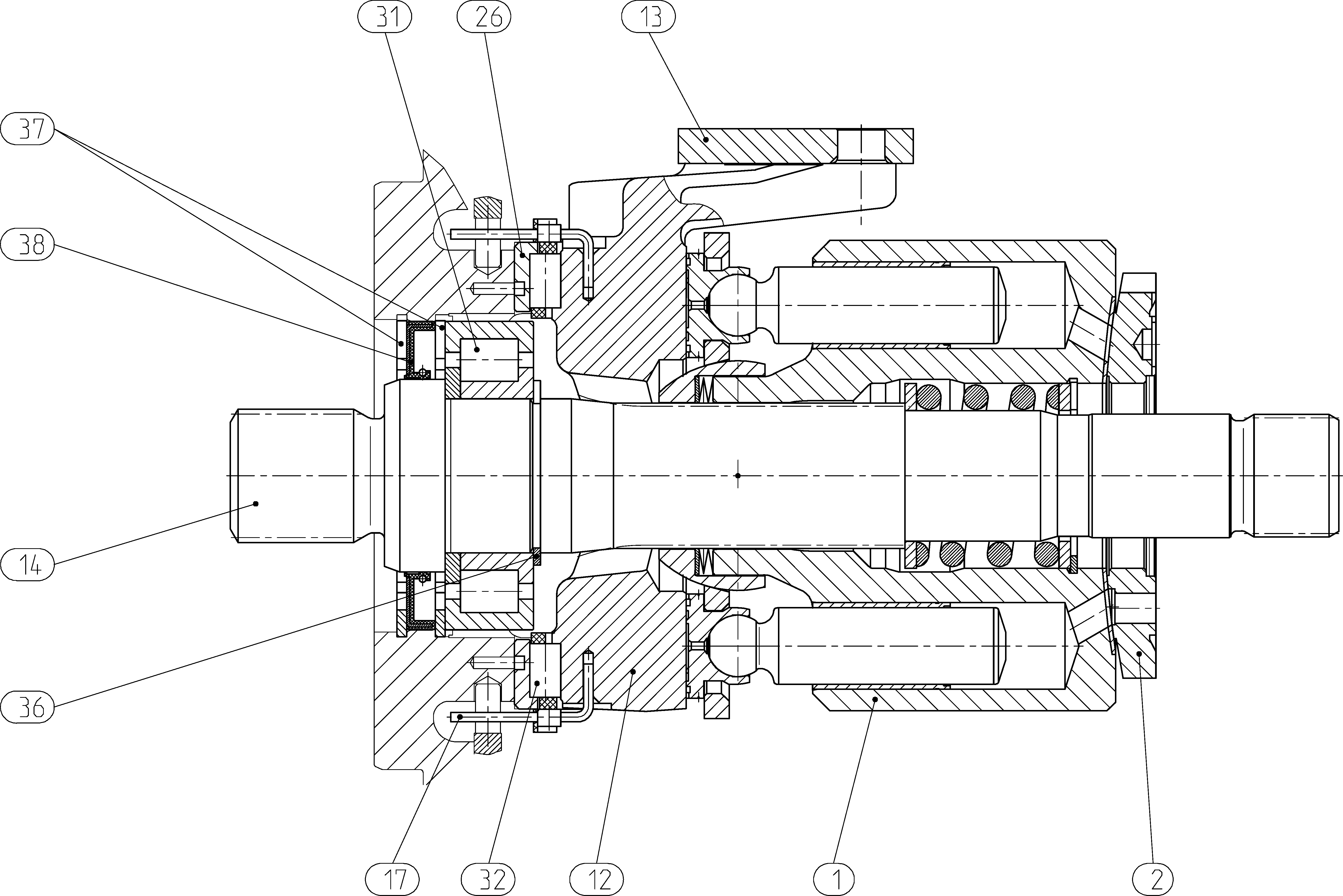

ROTARY GROUPR902244109
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902118635 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902201438 | CONTROL PLATE, LEFT-HAND ROTATION | 1 | ||
| R902252337 | CRADLE | 1 | ||
| R902240702 | SLIDER | 1 | ||
| R909921000 | DRIVE SHAFT | 1 | ||
| R902244111 | WIRE | 2 | ||
| R913042206 | BEARING SHELL PAIR Assembly parts list →L | 1 | ||
| R913041249 | CYL. ROLLER BEARING | 1 | ||
| R902236674 | CAGE PAIR | 1 | ||
| R909084416 | RETAINING RING | 1 | ||
| R902600002 | RETAINING RING | 2 | ||
| R902601821 | ROTARY SHAFT LIP SEALD | 1 |
