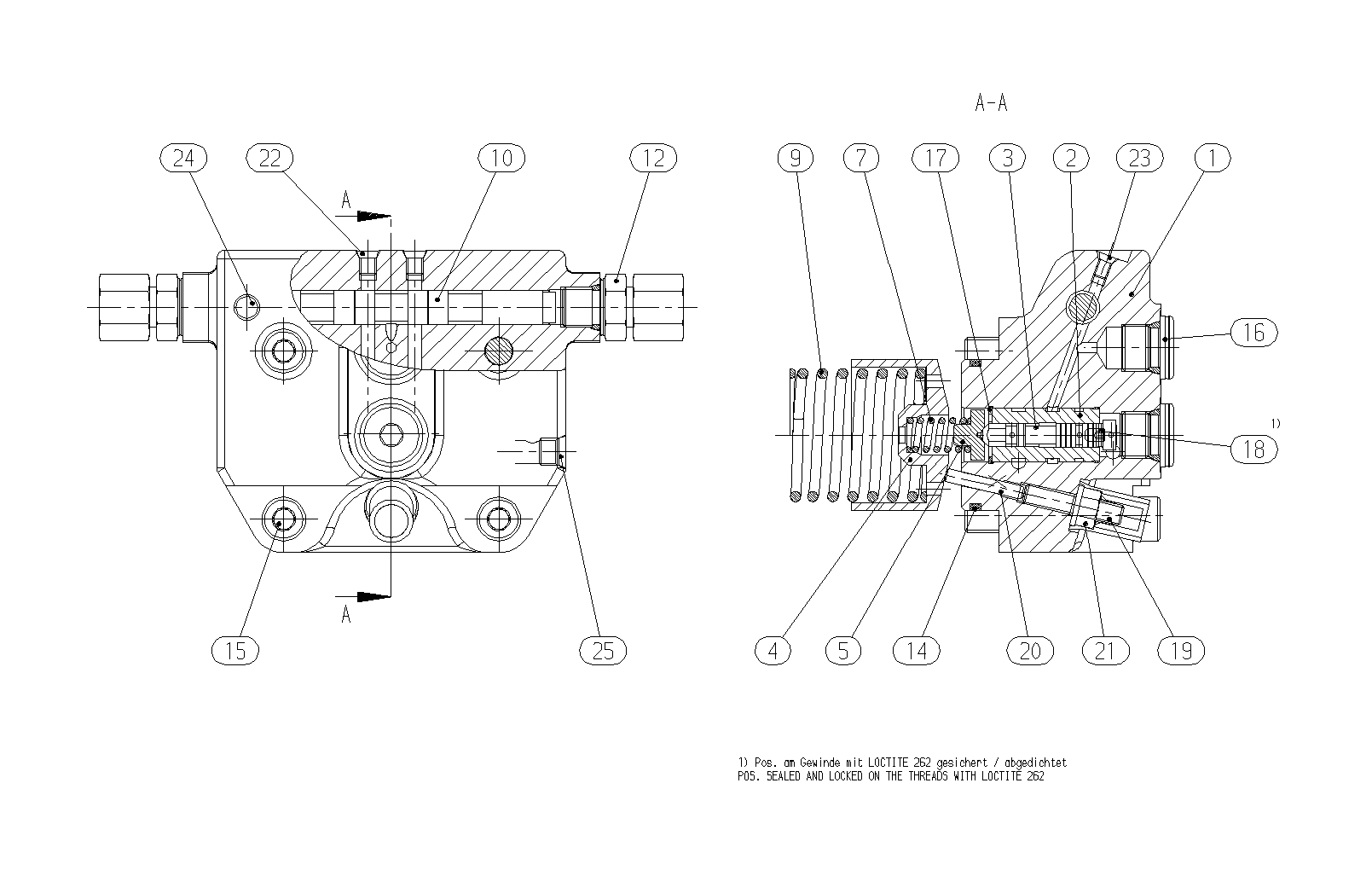

Assembly
CONTROL PARTR902246234
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902132098 | CONTROL HOUSING | 1 | ||
| R909921424 | CONTROL SLEEVE | 1 | ||
| R909921260 | CONTROL PISTON | 1 | ||
| R909651119 | ADJUSTING BUSHING | 1 | ||
| R909921339 | SPRING DISK | 1 | ||
| R909921419 | COMPRESSION SPRING | 1 | ||
| R909651117 | COMPRESSION SPRING | 1 | ||
| R909420720 | SLIDE | 1 | ||
| R913004137 | THREADED FASTENER | 2 | ||
| R909085560 | O-RINGD | 1 | ||
| R909831514 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831482 | SCREW PLUGD | 2 | ||
| R909083381 | RETAINING RING | 1 | ||
| R902216406 | PLUG | 1 | ||
| R909152427 | SETSCREW | 1 | ||
| R909087756 | STRAIGHT PIN | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 8 | ||
| R909831316 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 |
