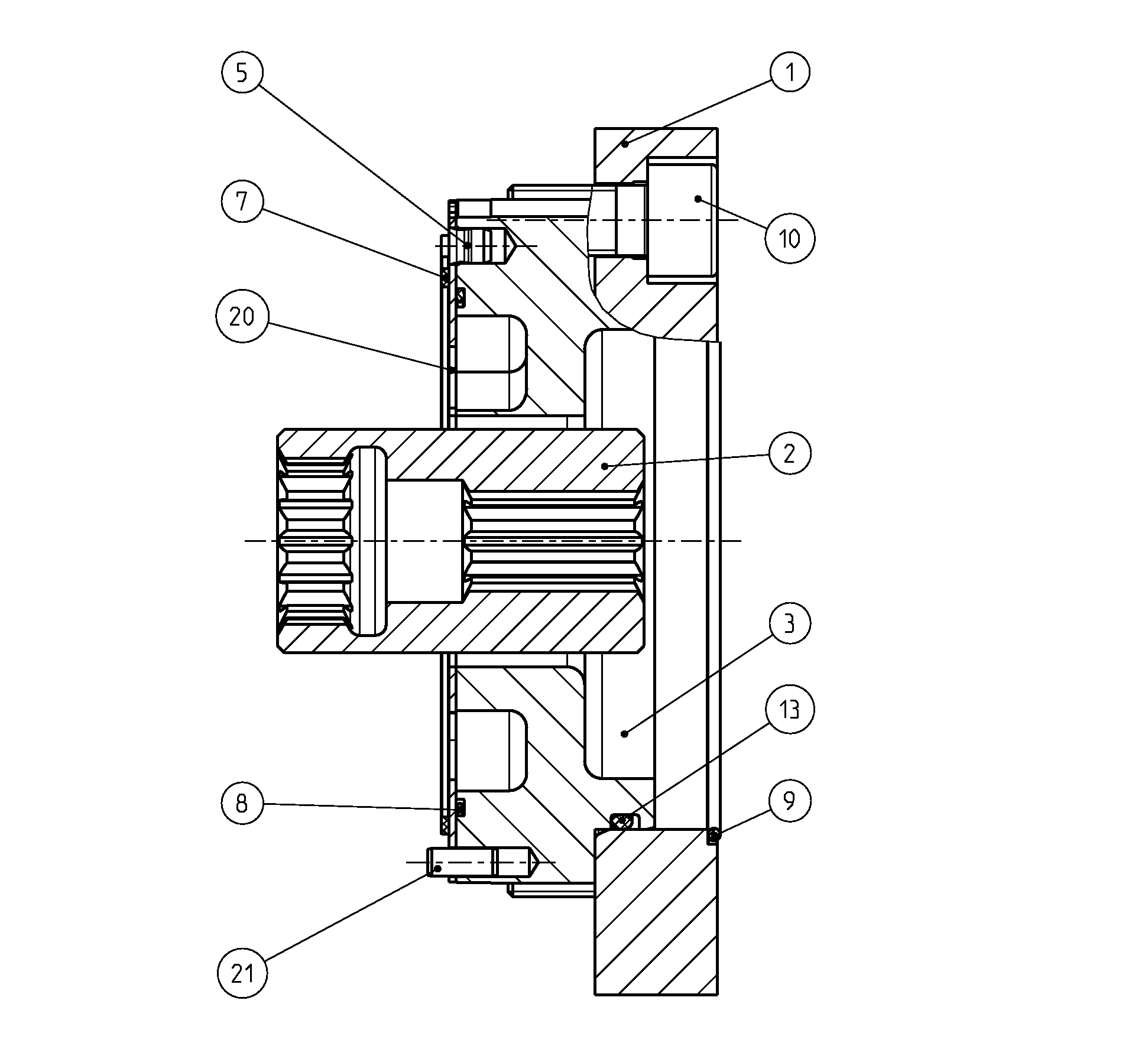

Assembly
BELL HOUSINGR902246742
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902252429 | INTERMEDIATE FLANGE | 1 | ||
| 2 | R909443576 | THROUGH DRIVE COUPLING | 1 | |
| 3 | R902136614 | SEAL RING | 1 | |
| R902603002 | HOLDING PLUG | 2 | ||
| R913037188 | KANTSEALD | 1 | ||
| 8 | R909086991 | O-RINGD | 1 | |
| R913044774 | O-RINGD | 1 | ||
| 10 | R909083058 | SOCKET HEAD CAP SCREW | 4 | |
| 13 | R909084504 | O-RINGD | 1 | |
| 20 | R902103347 | WEAR PLATE | 1 | |
| 21 | R913009663 | STRAIGHT PIN | 1 |
