Assembly

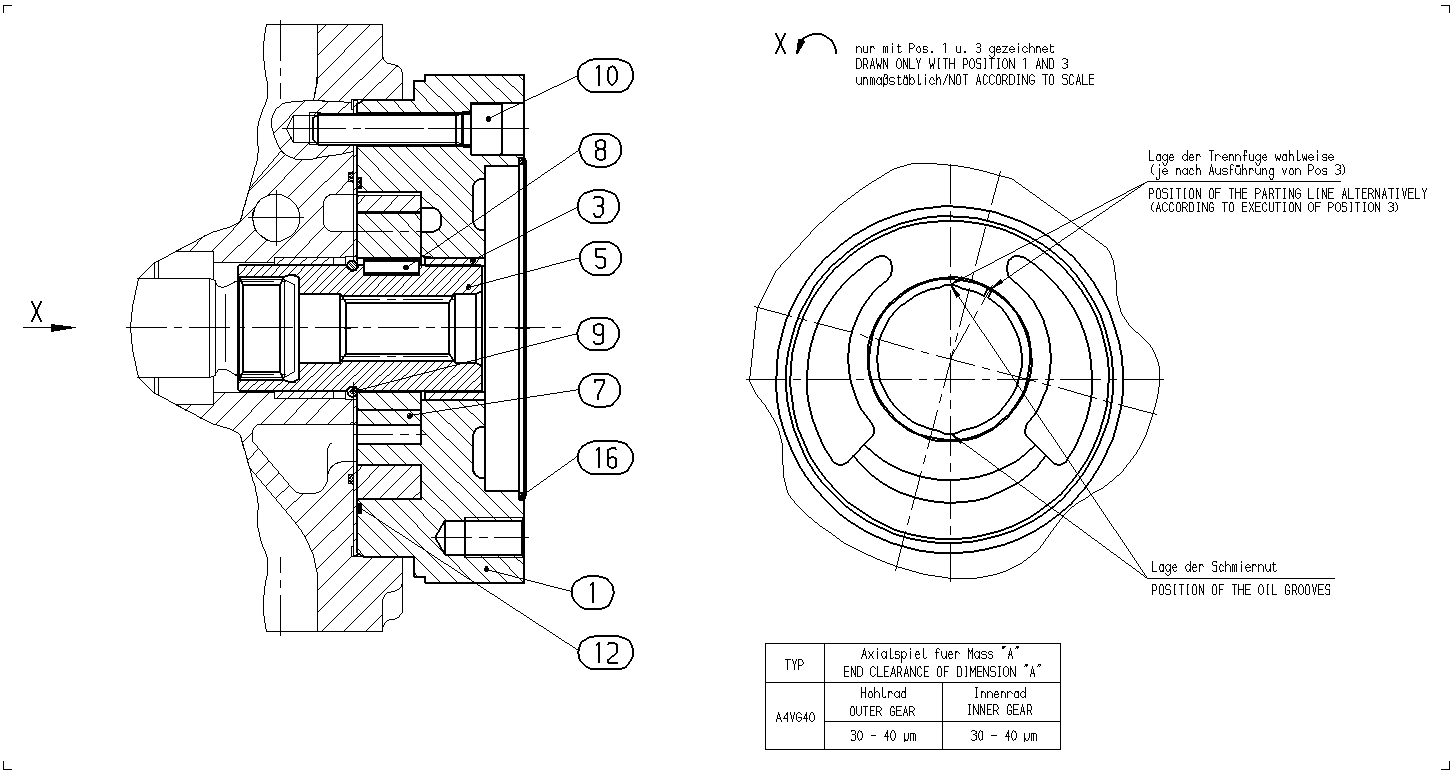

INTERNAL GEAR PUMPR902246912
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902252423 | INTERMEDIATE FLANGE | 1 | ||
| R902260545 | BUSHING | 1 | ||
| R902246911 | THROUGH DRIVE SHAFT | 1 | ||
| R902006255 | WHEEL SET | 1 | ||
| R902025649 | PARALLEL KEY | 1 | ||
| R913057533 | SNAP RING | 1 | ||
| R909830176 | SOCKET HEAD CAP SCREW | 4 | ||
| R913037188 | KANTSEALD | 1 | ||
| R913044774 | O-RINGD | 1 |
