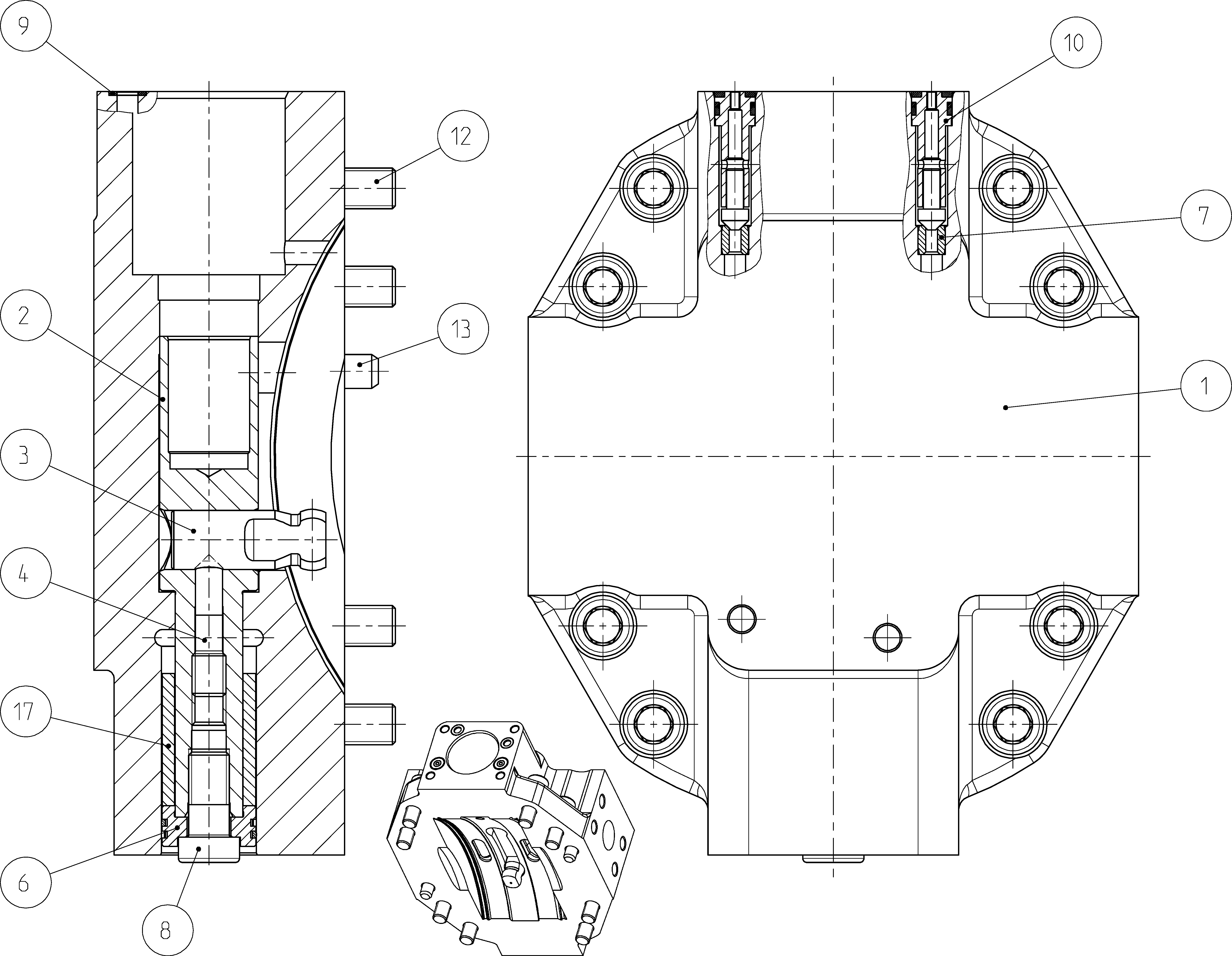

Assembly
COVER PLATER902251036
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902189256 | COVER PLATE | 1 | ||
| R902101484 | POSITIONING PISTON | 1 | ||
| R909422217 | POSITIONING STUD | 1 | ||
| R902101485 | SETSCREW | 1 | ||
| R902102903 | PISTON | 1 | ||
| R902209845 | BUSHING | 2 | ||
| R909083204 | SOCKET HEAD CAP SCREW | 1 | ||
| R909085577 | O-RINGD | 3 | ||
| R902096781 | CHECK VALVE | 2 | ||
| R913068734 | SOCKET HEAD CAP SCREW | 8 | ||
| R913009669 | STRAIGHT PIN | 2 | ||
| R902186146 | STOP BUSHING | 1 |
