Assembly

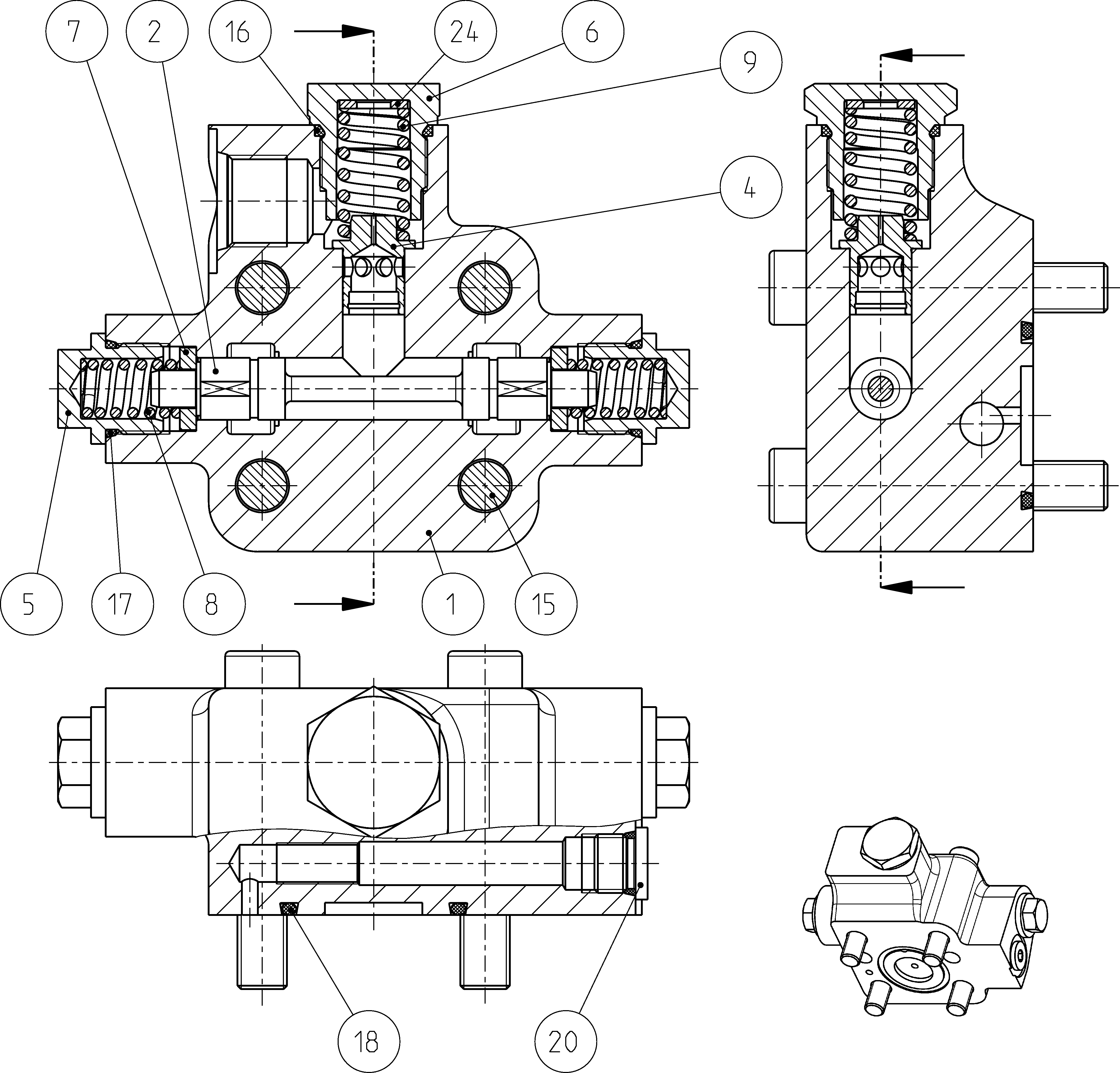

FLUSH/BOOST PRESSURE VALVER902253064
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902163524 | VALVE HOUSING | 1 | ||
| R902119990 | FLUSHING PISTON | 1 | ||
| R902134982 | VALVE SPOOL | 1 | ||
| R902163788 | SCREW PLUG | 2 | ||
| R909435052 | SCREW PLUG | 1 | ||
| R902182251 | WASHER | 2 | ||
| R902200059 | COMPRESSION SPRING | 2 | ||
| R902206990 | COMPRESSION SPRING | 1 | ||
| R909083099 | SOCKET HEAD CAP SCREW | 4 | ||
| R909152694 | O-RINGD | 1 | ||
| R902600738 | O-RINGD | 2 | ||
| R909154053 | O-RINGD | 1 | ||
| R913044793 | SCREW PLUGD | 1 | ||
| R909445735 | WASHER | 1 |
