Assembly

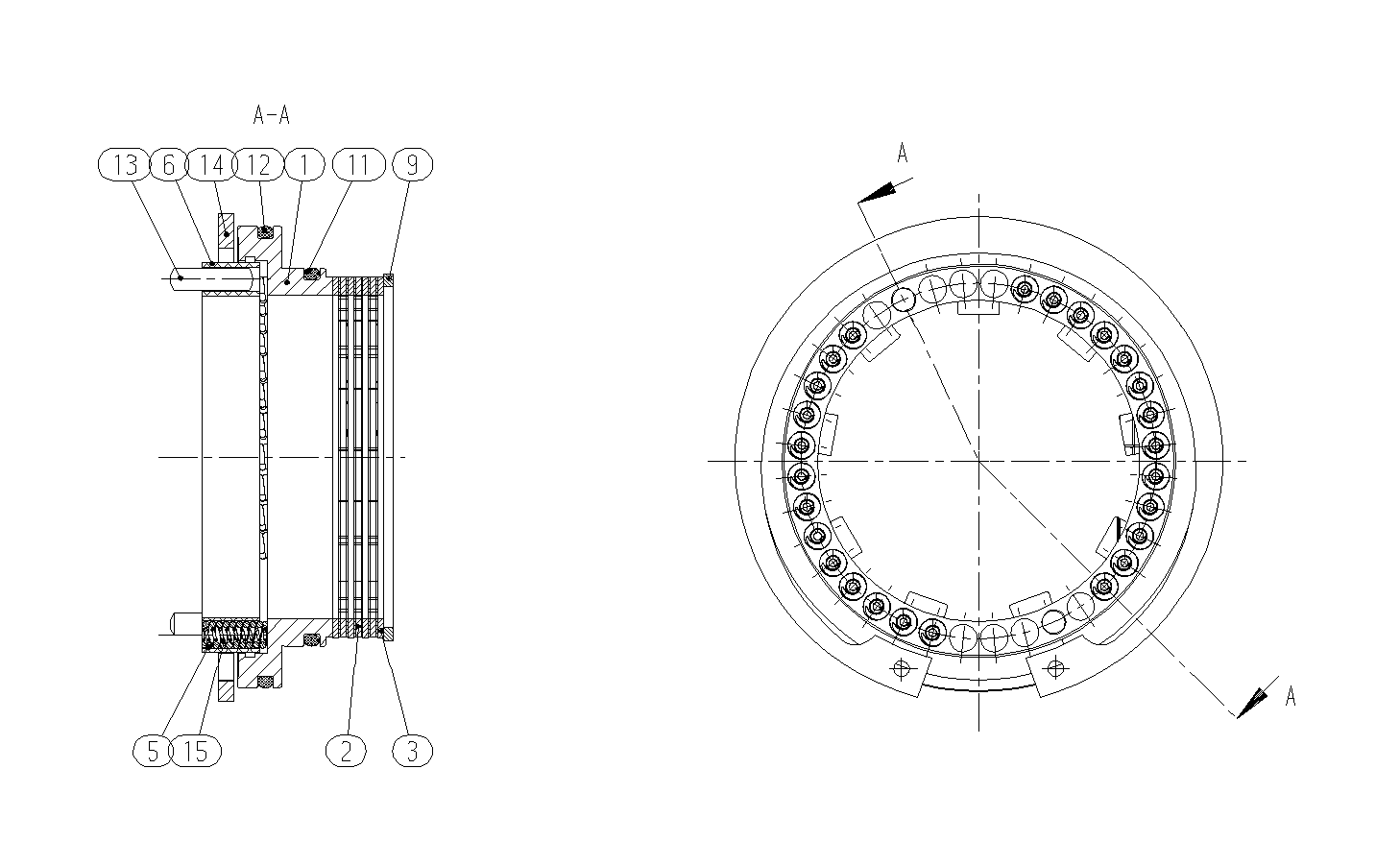

THRUST RINGR902254125
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902078362 | THRUST RING | 1 | ||
| R913005251 | DISC | 3 | ||
| R913005252 | COUNTER DISC | 4 | ||
| R902029957 | COMPRESSION SPRING | 26 | ||
| R902017942 | GUIDE RING | 1 | ||
| R902246908 | SNAP RING | 1 | ||
| R909085572 | O-RINGD | 1 | ||
| R909085573 | O-RINGD | 1 | ||
| R909084166 | STRAIGHT PIN | 2 | ||
| R902062393 | RETAINING RING | 1 | ||
| R902071449 | COMPRESSION SPRING | 26 |
