Assembly

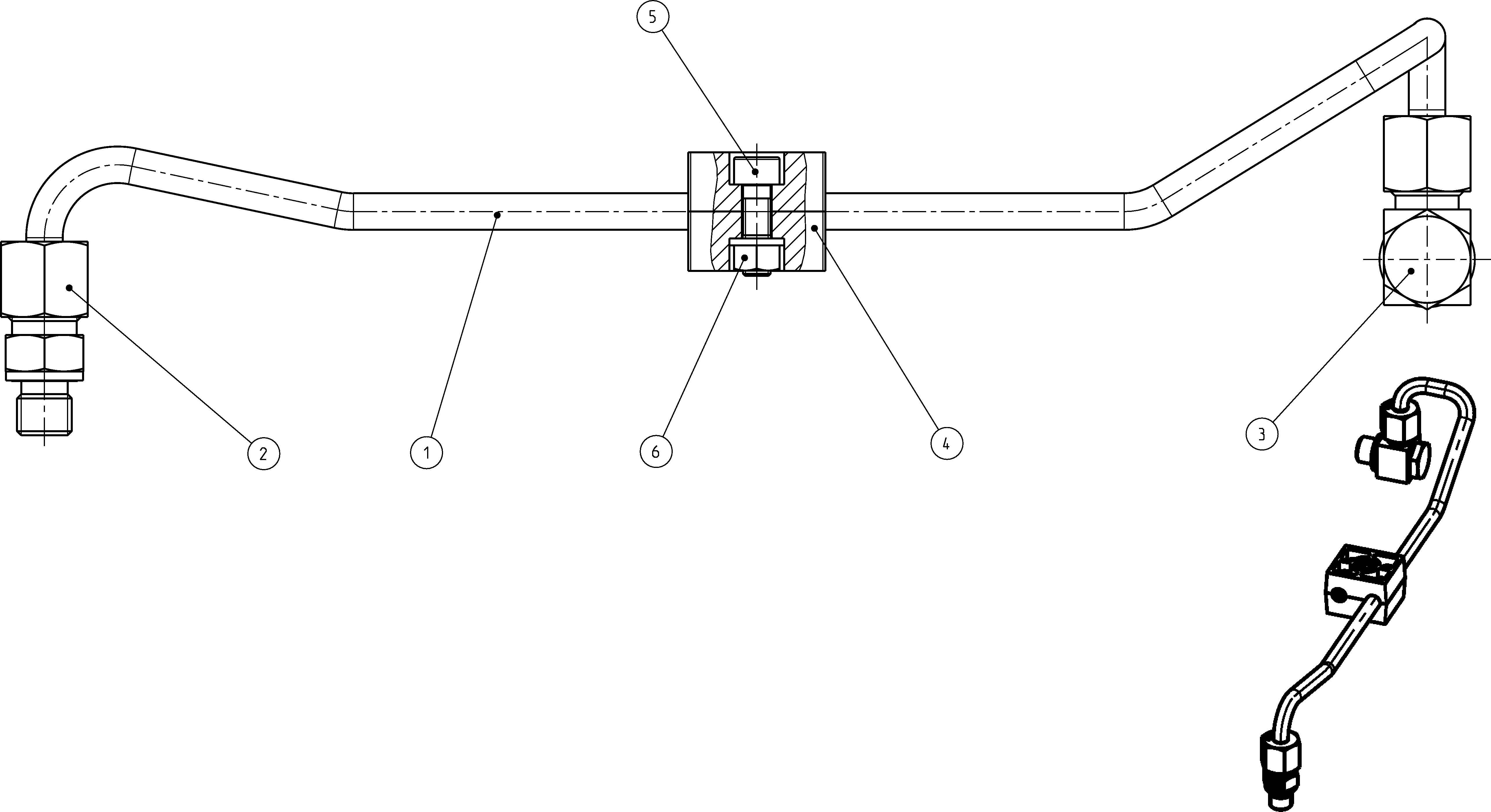

HYDRAULIC LINER902254190
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902254191 | PIPE Assembly parts list →L | 1 | ||
| R901391538 | MALE CONNECTOR | 1 | ||
| R901391539 | SWIVEL TUBE FITTING | 1 | ||
| R909152842 | DOUBLE CLAMP | 1 | ||
| R909083021 | SOCKET HEAD CAP SCREW | 1 | ||
| R909157764 | SEALING NUT | 1 |
