Assembly

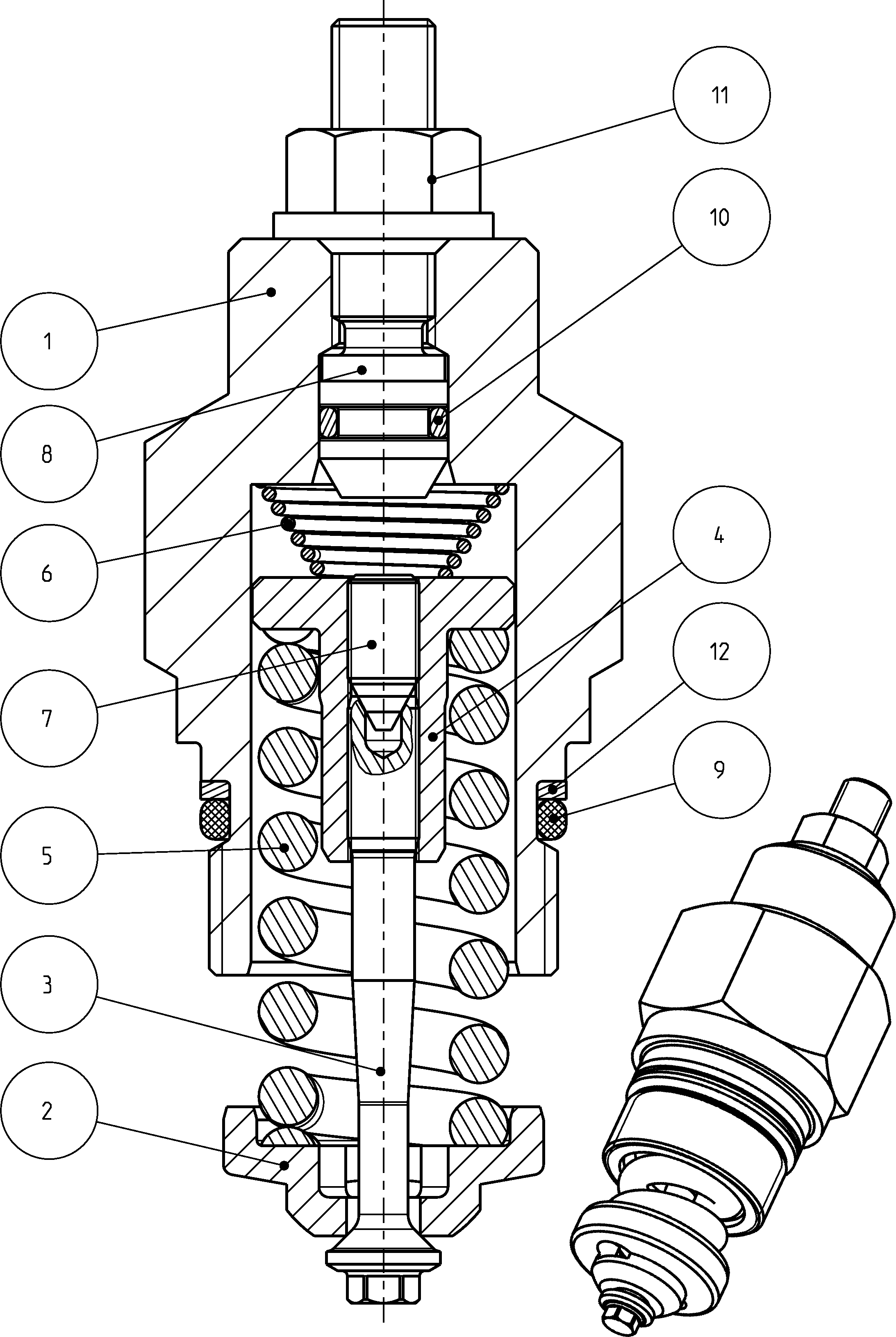

PRESSURE RELIEF VALVER902254835
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902254836 | SCREW PLUG | 1 | ||
| R902010478 | VALVE PLATE | 1 | ||
| R902197212 | VALVE STEM | 1 | ||
| R902016288 | EXPANSION PIECE | 1 | ||
| R909921948 | COMPRESSION SPRING | 1 | ||
| R902215544 | COMPRESSION SPRING | 1 | ||
| R902016289 | SETSCREW | 1 | ||
| R909445131 | ADJUSTING SCREW | 1 | ||
| R909830867 | O-RINGD | 1 | ||
| R909086380 | O-RINGD | 1 | ||
| R909152707 | SEALING NUTD | 1 |
