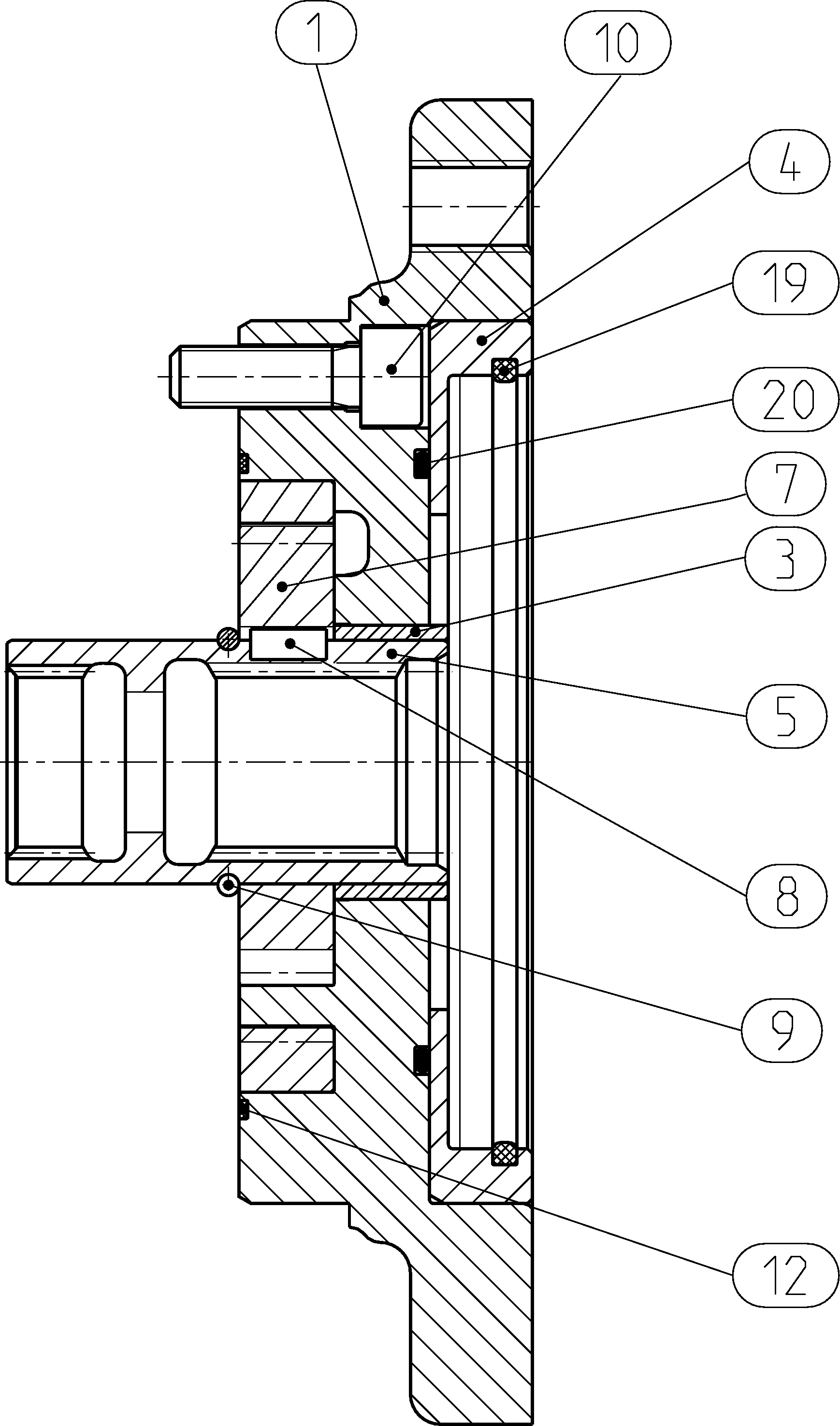

Assembly
INTERNAL GEAR PUMPR902258124
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902258123 | INTERMEDIATE FLANGE | 1 | ||
| R902260545 | BUSHING | 1 | ||
| R909444103 | INTERMEDIATE RING | 1 | ||
| R902013251 | THROUGH DRIVE SHAFT | 1 | ||
| R902006254 | WHEEL SET | 1 | ||
| R902025645 | PARALLEL KEY | 1 | ||
| R913057533 | SNAP RING | 1 | ||
| R909083039 | SOCKET HEAD CAP SCREW | 4 | ||
| R913037188 | KANTSEALD | 1 | ||
| R913032365 | O-RINGD | 1 | ||
| R913054822 | BURL SEAL RINGD | 1 |
