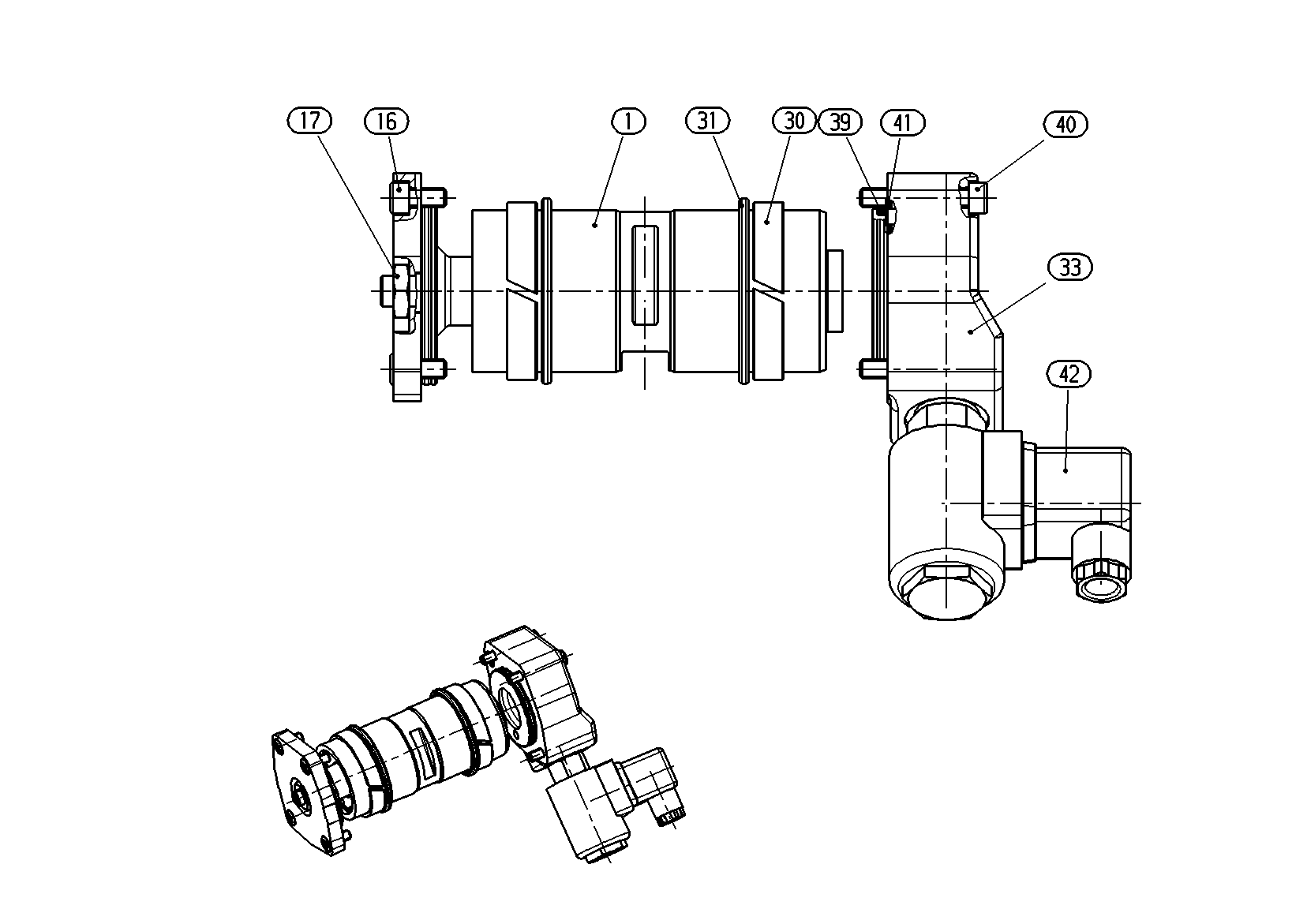

Assembly
CONTROLR902272478
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902039791 | POSITIONING PISTON Assembly parts list →L | 1 | ||
| R909083018 | SOCKET HEAD CAP SCREW | 4 | ||
| R902017521 | HEXAGON NUT | 1 | ||
| R902600558 | ROD GUIDANCE RING | 2 | ||
| R902602138 | ROD SEALD | 2 | ||
| R902234845 | COVER | 1 | ||
| R909086804 | O-RINGD | 1 | ||
| R909083025 | SOCKET HEAD CAP SCREW | 4 | ||
| 41 | R909156305 | O-RINGD | 1 | |
| R902603288 | SLIDE GATE VALVE Assembly parts list →L | 1 |
