Assembly

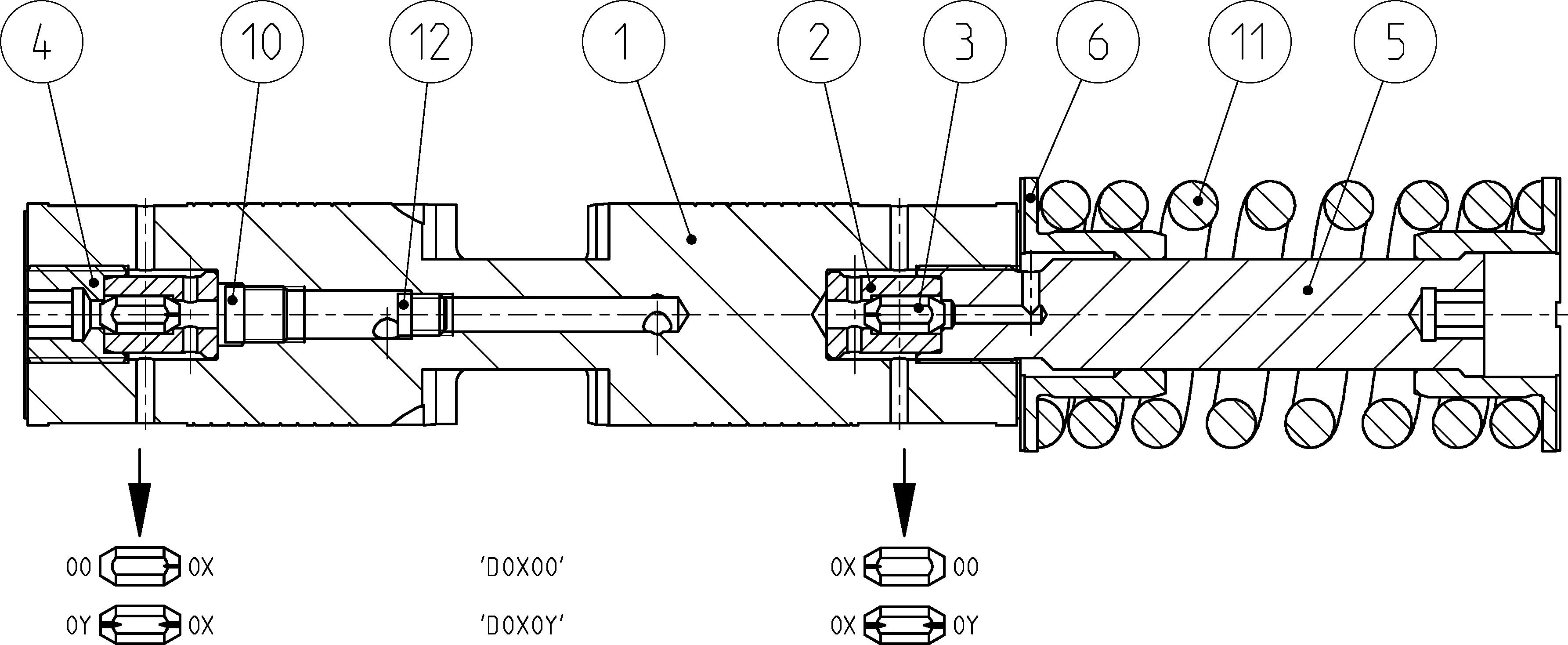

BRAKE PISTONR902272598
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902272513 | BRAKE PISTON | 1 | |
| R902066227 | VALVE BUSHING | 2 | ||
| R902067254 | THROTTLE PIN | 2 | ||
| 4 | R902083486 | VALVE SCREW | 1 | |
| R902083485 | BOLT | 1 | ||
| R902236298 | SPRING DISK | 2 | ||
| R909831348 | PLUG | 1 | ||
| 11 | R902049029 | COMPRESSION SPRING | 1 | |
| R909156497 | NOZZLE | 1 |
