Assembly

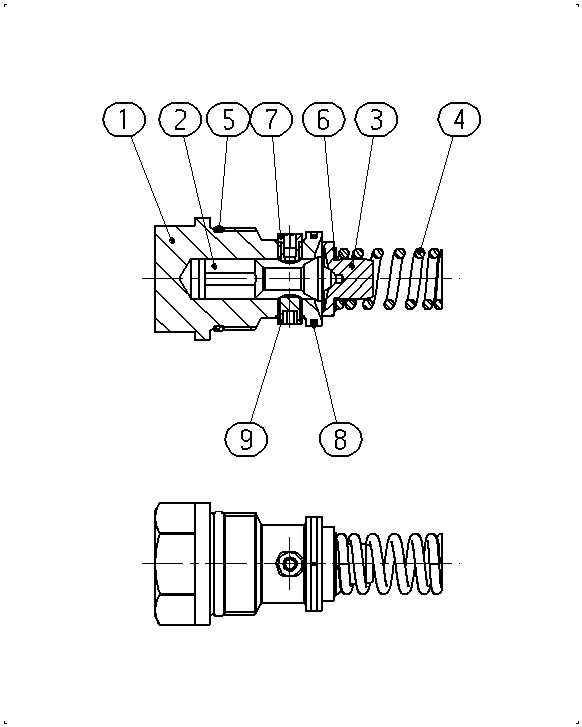

PRESSURE RELIEF VALVER902272698
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902074562 | SCREW PLUG | 1 | ||
| R909435899 | VALVE SPOOL | 1 | ||
| R902010336 | SPRING DISK | 1 | ||
| R902162680 | COMPRESSION SPRING | 1 | ||
| R909083761 | O-RINGD | 1 | ||
| R909150369 | SHIM RING | 1 | ||
| R909150370 | SHIM RING | 1 | ||
| R909153402 | SHIM RING | 1 | ||
| R909156496 | NOZZLE | 1 | ||
| R902601678 | STEEL SEALING RING | 1 | ||
| R909831347 | PLUG | 1 |
