Assembly

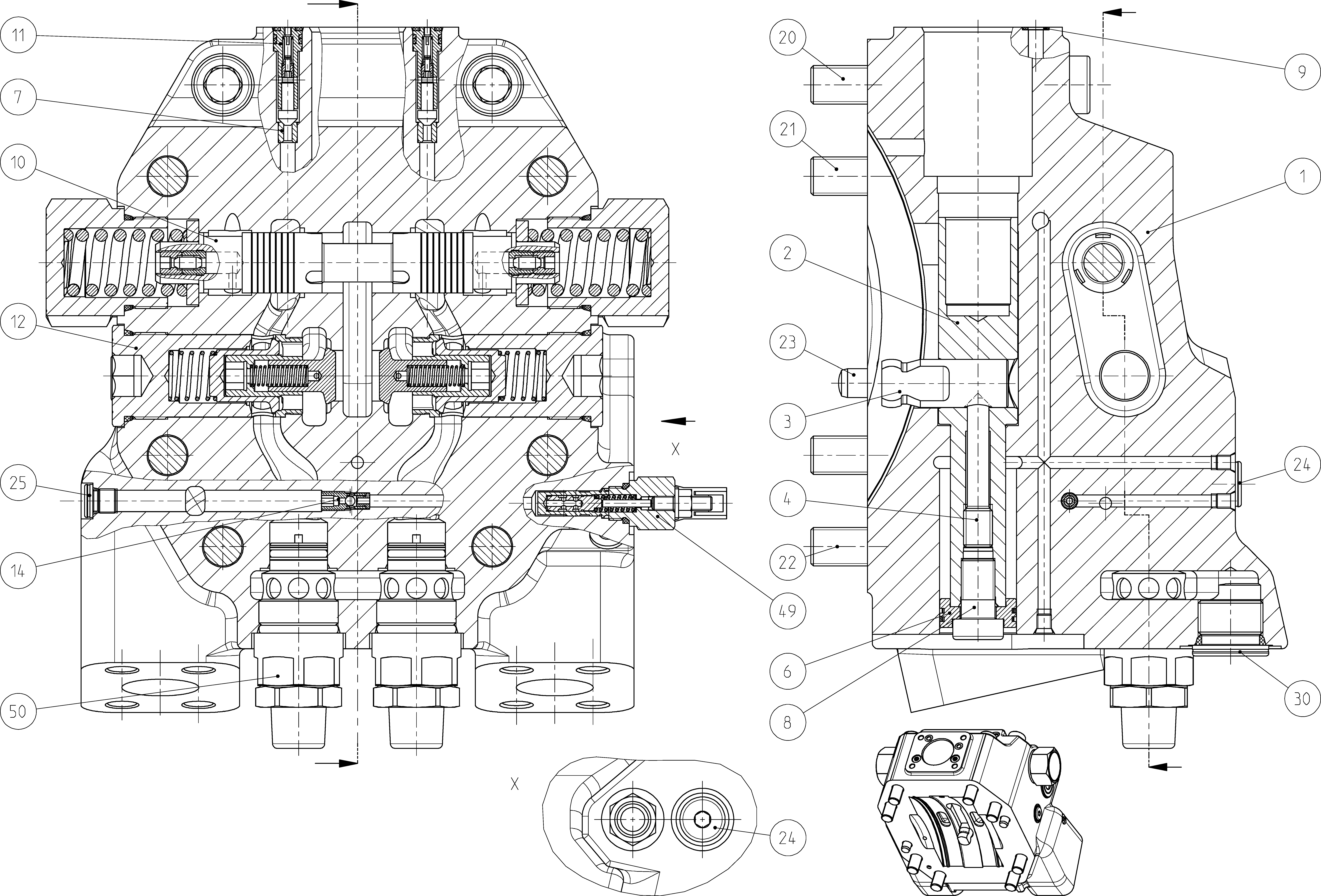

COVER PLATER902276072
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902276071 | COVER PLATE | 1 | ||
| R902101481 | POSITIONING PISTON | 1 | ||
| R909422021 | POSITIONING STUD | 1 | ||
| R902101482 | SETSCREW | 1 | ||
| R902102905 | PISTON | 1 | ||
| R902209845 | BUSHING | 2 | ||
| R909831057 | SOCKET HEAD CAP SCREW | 1 | ||
| R909085577 | O-RINGD | 3 | ||
| R902279005 | BRAKE VALVE Assembly parts list →L | 1 | ||
| R902096781 | CHECK VALVE | 2 | ||
| R902242997 | VALVE Assembly parts list →L | 2 | ||
| R902042017 | SHUTTLE VALVE Assembly parts list →L | 1 | ||
| R909083145 | SOCKET HEAD CAP SCREW | 2 | ||
| R909087286 | SOCKET HEAD CAP SCREW | 2 | ||
| R916565845 | SOCKET HEAD CAP SCREW | 4 | ||
| R913009666 | STRAIGHT PIN | 2 | ||
| R909831482 | SCREW PLUGD | 4 | ||
| R902602216 | SCREW PLUGD | 1 | ||
| R902601712 | SCREW PLUGD | 1 | ||
| R902196859 | BRAKE RELEASE VALVE Assembly parts list →L | 1 | ||
| R902603808 | DELIVERY-VALVE ASSEMBLY Assembly parts list →L | 2 |
