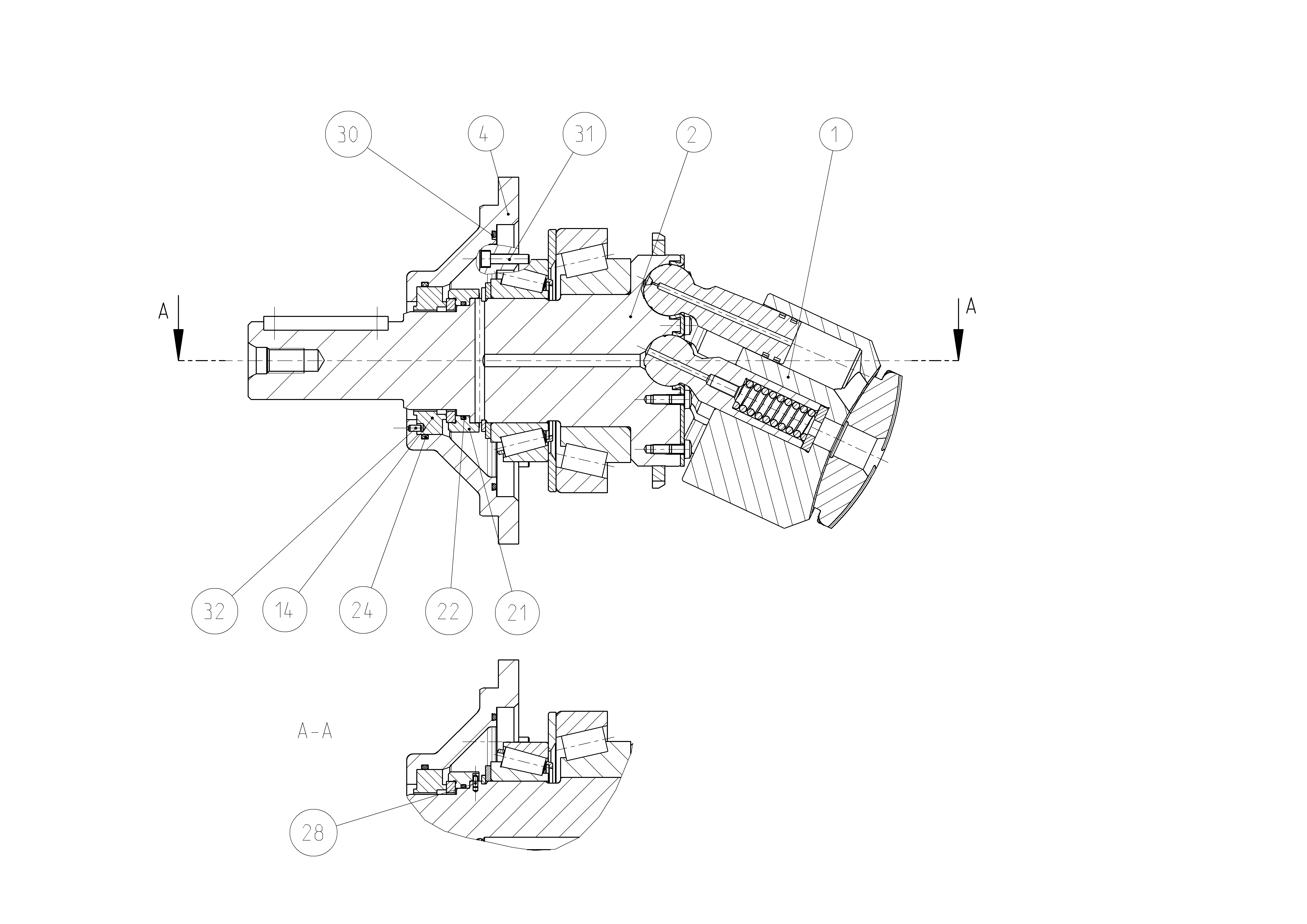

Assembly
ROTARY GROUPR902276169
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902276237 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 2 | R902270205 | DRIVE SHAFT Assembly parts list →L | 1 | |
| 4 | R902189410 | HOUSING COVER | 1 | |
| 14 | R913049654 | SLIDE RING SEAL | 1 | |
| 21 | R902602437 | COUNTER RING | 1 | |
| 22 | R909086648 | O-RING | 1 | |
| 24 | R909157980 | O-RING | 1 | |
| 28 | R902088684 | PIN | 1 | |
| 30 | R909156675 | O-RING | 1 | |
| 31 | R909156524 | SOCKET HEAD CAP SCREW | 4 | |
| 32 | R902601738 | STRAIGHT PIN | 1 |
