Assembly

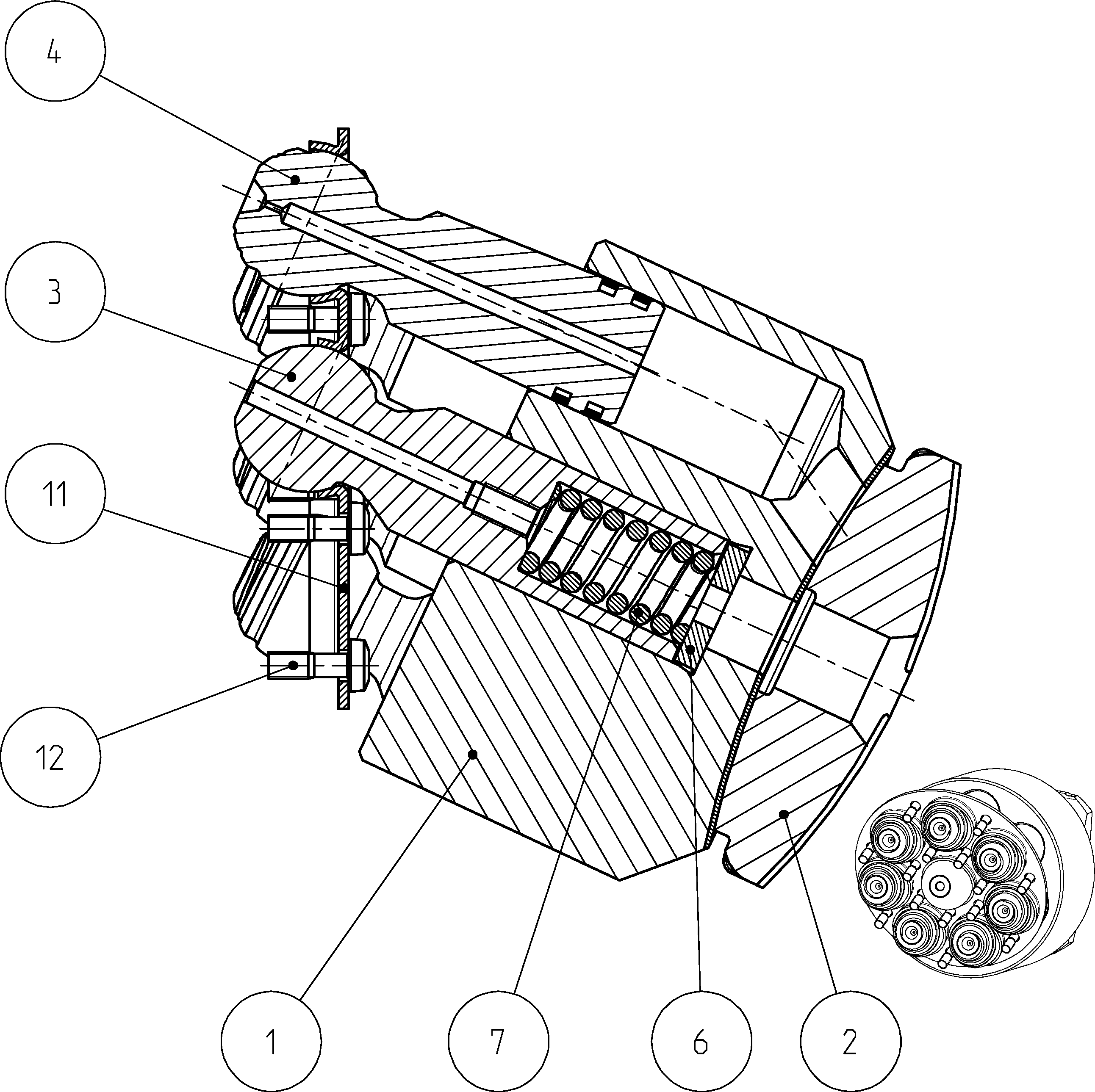

ROTARY GROUPR902276476
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909650689 | CYLINDER | 1 | ||
| R902273407 | CONTROL LENS | 1 | ||
| R909921604 | CENTER PIN | 1 | ||
| R902036677 | PISTON | 7 | ||
| R902077201 | ADJUSTMENT SHIM Assembly parts list →L | 1 | ||
| R909921583 | COMPRESSION SPRING | 1 | ||
| R902036644 | RETAINING PLATE | 1 | ||
| R902602715 | PAN-HEAD SCREW | 7 |
