Assembly

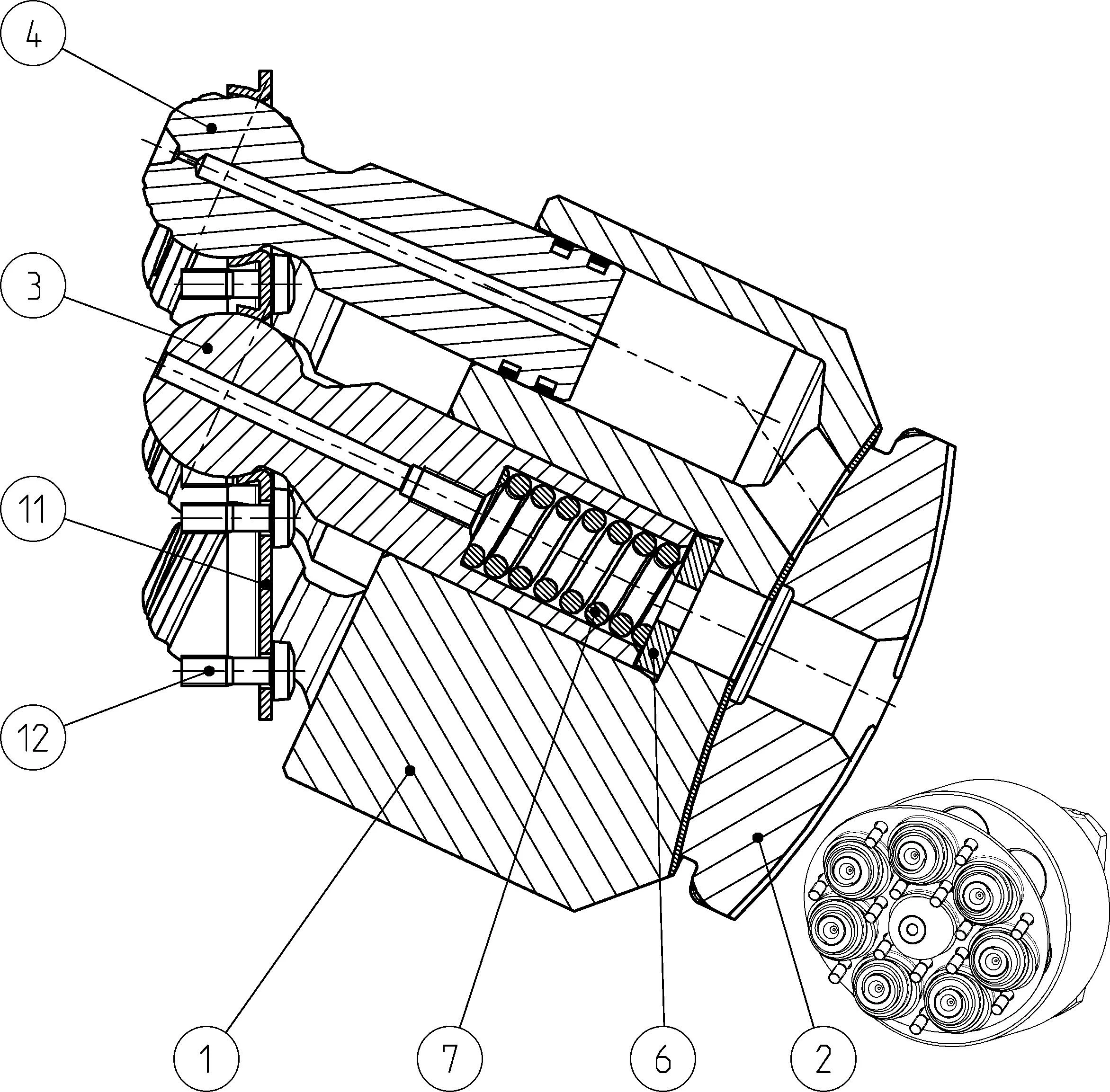

ROTARY GROUPR902277865
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909430794 | CYLINDER | 1 | ||
| R902292809 | CONTROL LENS | 1 | ||
| R909921576 | CENTER PIN | 1 | ||
| R902021905 | PISTON | 7 | ||
| R902077201 | ADJUSTMENT SHIM Assembly parts list →L | 1 | ||
| R909921583 | COMPRESSION SPRING | 1 | ||
| 11 | R902072553 | RETAINING PLATE | 1 | |
| R902602395 | PAN-HEAD SCREW | 14 |
