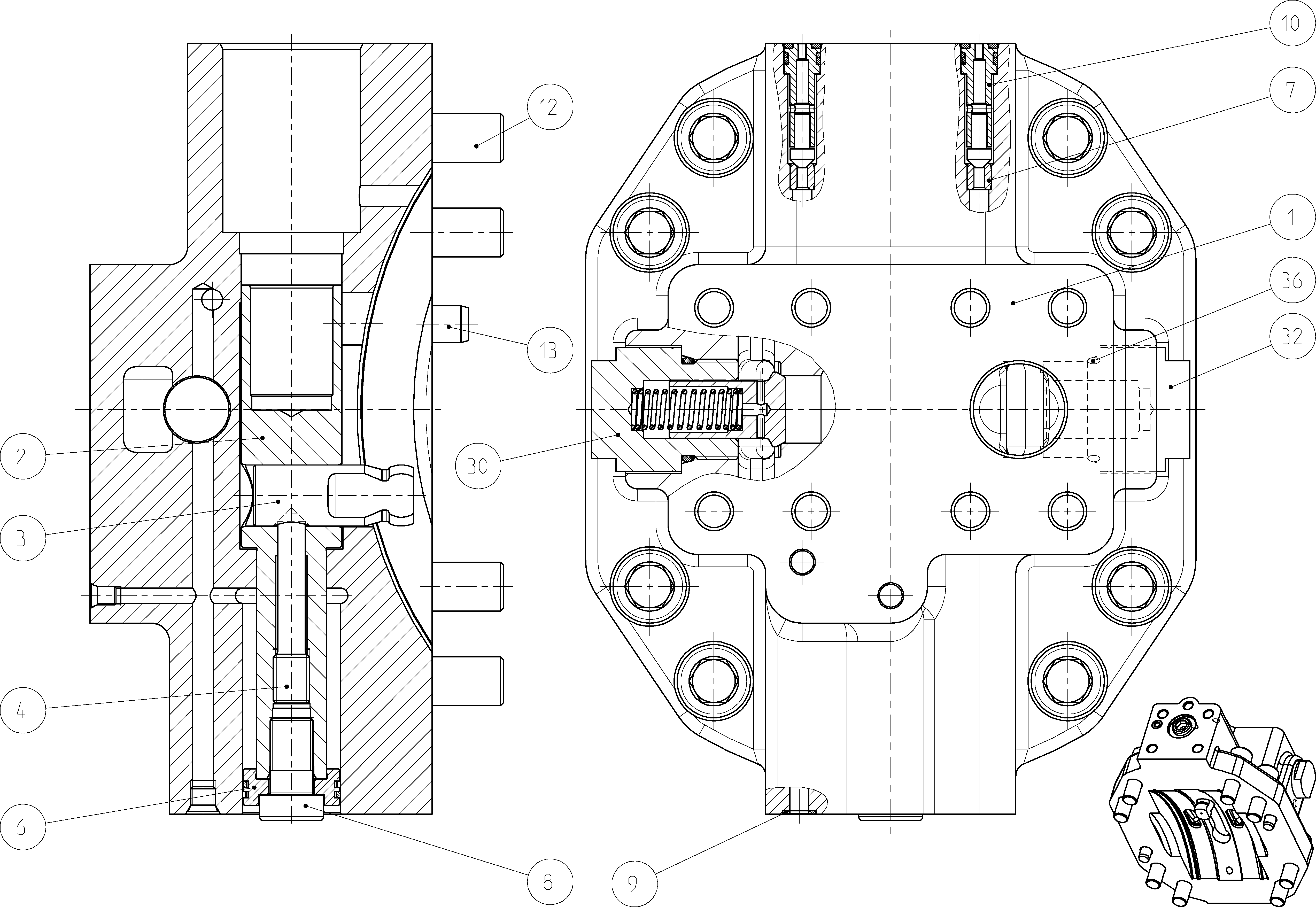

Assembly
COVER PLATER902277910
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902277908 | COVER PLATE | 1 | ||
| R902101481 | POSITIONING PISTON | 1 | ||
| R909422021 | POSITIONING STUD | 1 | ||
| R902101482 | SETSCREW | 1 | ||
| R902102905 | PISTON | 1 | ||
| R902209845 | BUSHING | 2 | ||
| R909831057 | SOCKET HEAD CAP SCREW | 1 | ||
| R909085577 | O-RINGD | 3 | ||
| R902096781 | CHECK VALVE | 2 | ||
| R913068740 | SOCKET HEAD CAP SCREW | 8 | ||
| R913009666 | STRAIGHT PIN | 2 | ||
| R902200276 | VALVE Assembly parts list →L | 1 | ||
| R902200277 | SCREW PLUG | 1 | ||
| R909830870 | O-RINGD | 1 |
