Assembly

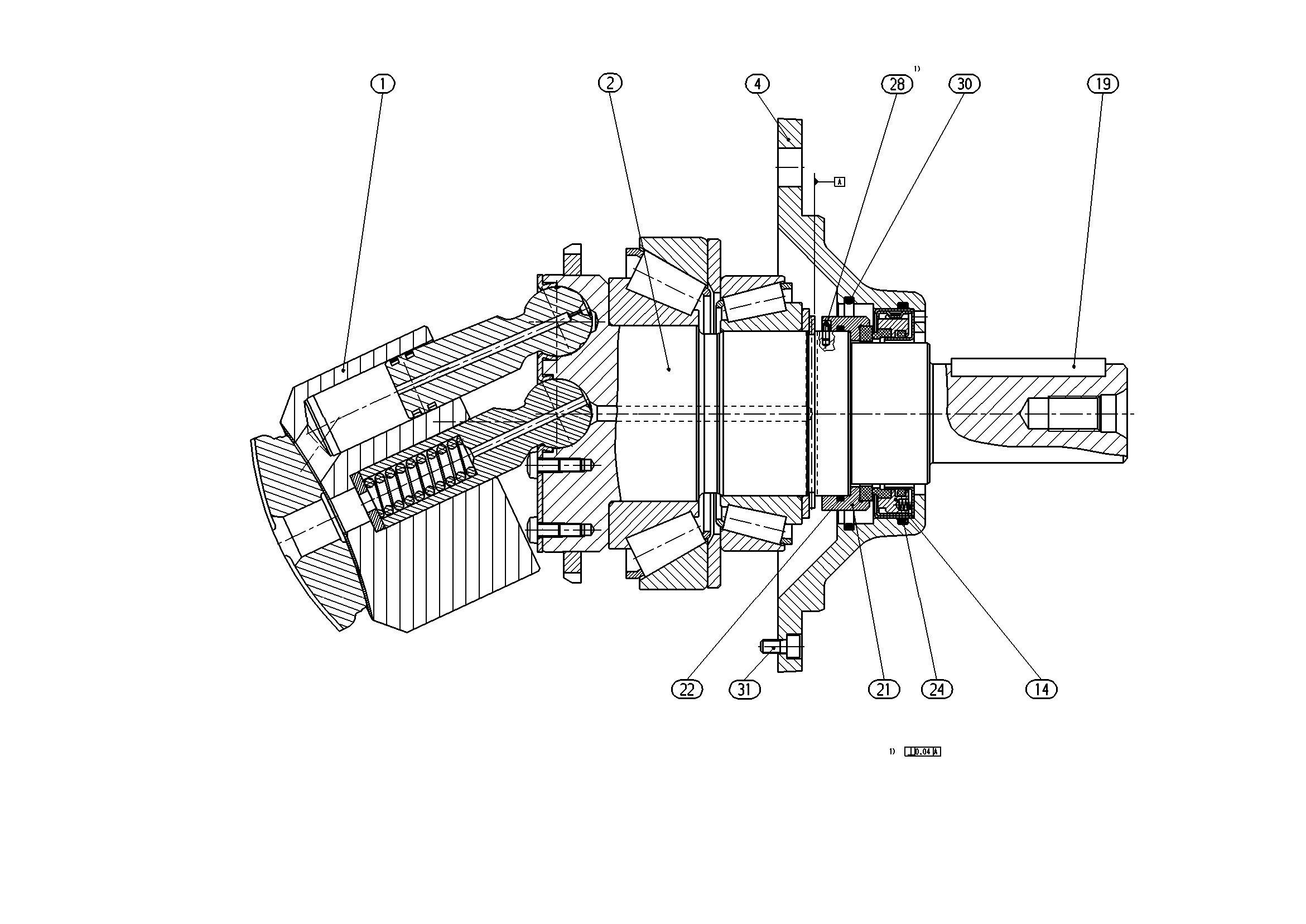

ROTARY GROUPR902281519
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902277865 | ROTARY GROUP Assembly parts list →L | 1 | |
| R902094949 | DRIVE SHAFT Assembly parts list →L | 1 | ||
| R902060170 | HOUSING COVER | 1 | ||
| R909153684 | SLIDE RING SEAL | 1 | ||
| R902602608 | COUNTER RING | 1 | ||
| R909085567 | O-RING | 1 | ||
| R909157980 | O-RING | 1 | ||
| R902088684 | PIN | 1 | ||
| R909154986 | O-RING | 1 | ||
| R909083018 | SOCKET HEAD CAP SCREW | 4 |
