Assembly

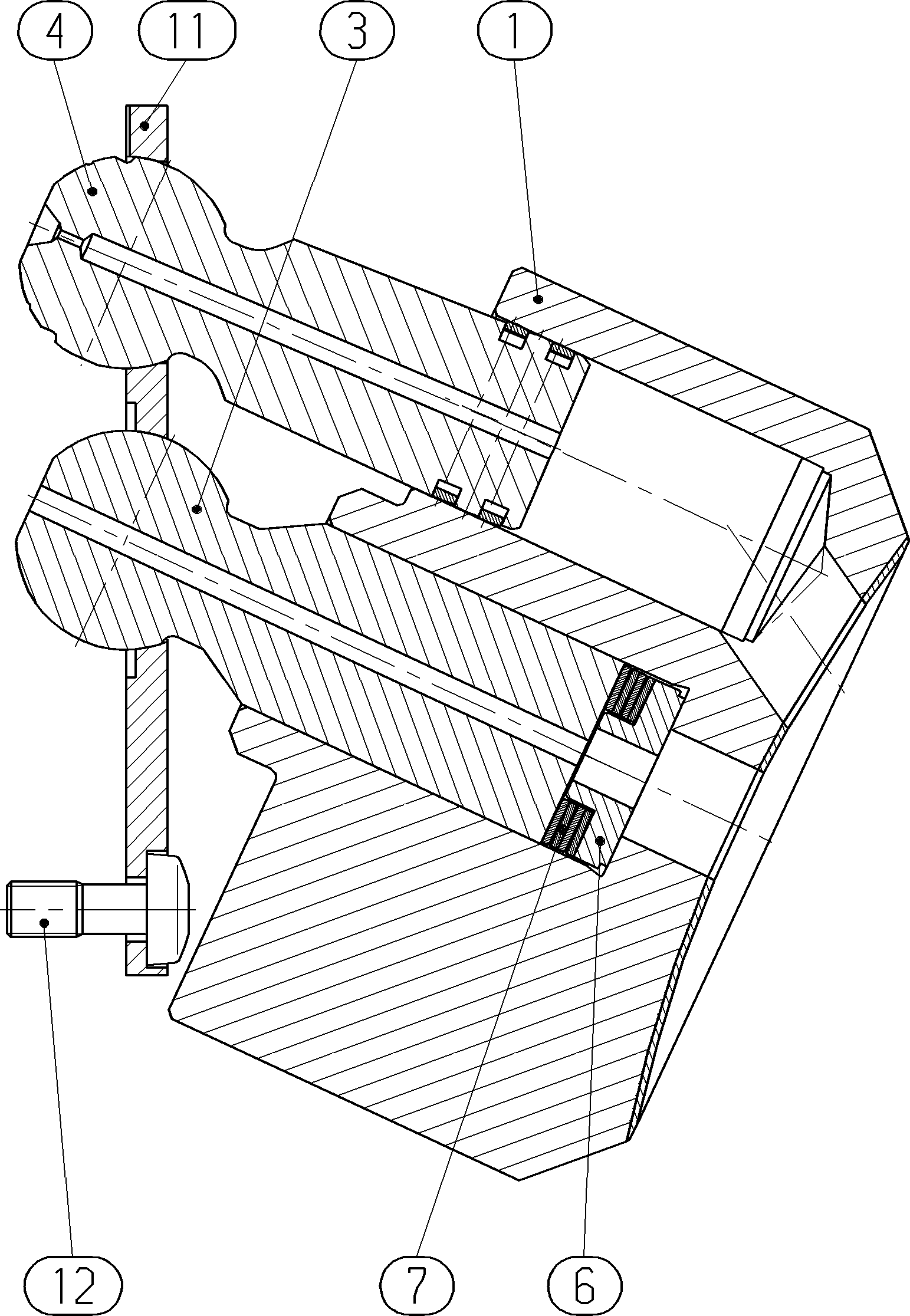

ROTARY GROUPR902283334
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902035116 | CYLINDER | 1 | ||
| 2 | R902078749 | CONTROL LENS, RIGHT-HAND ROTATION | 1 | |
| R902036819 | CENTER PIN | 1 | ||
| R902036771 | PISTON | 7 | ||
| R902073932 | SPRING DISK Assembly parts list →L | 1 | ||
| R909410551 | DISC SPRING | 4 | ||
| R902036644 | RETAINING PLATE | 1 | ||
| R902602715 | PAN-HEAD SCREW | 7 |
