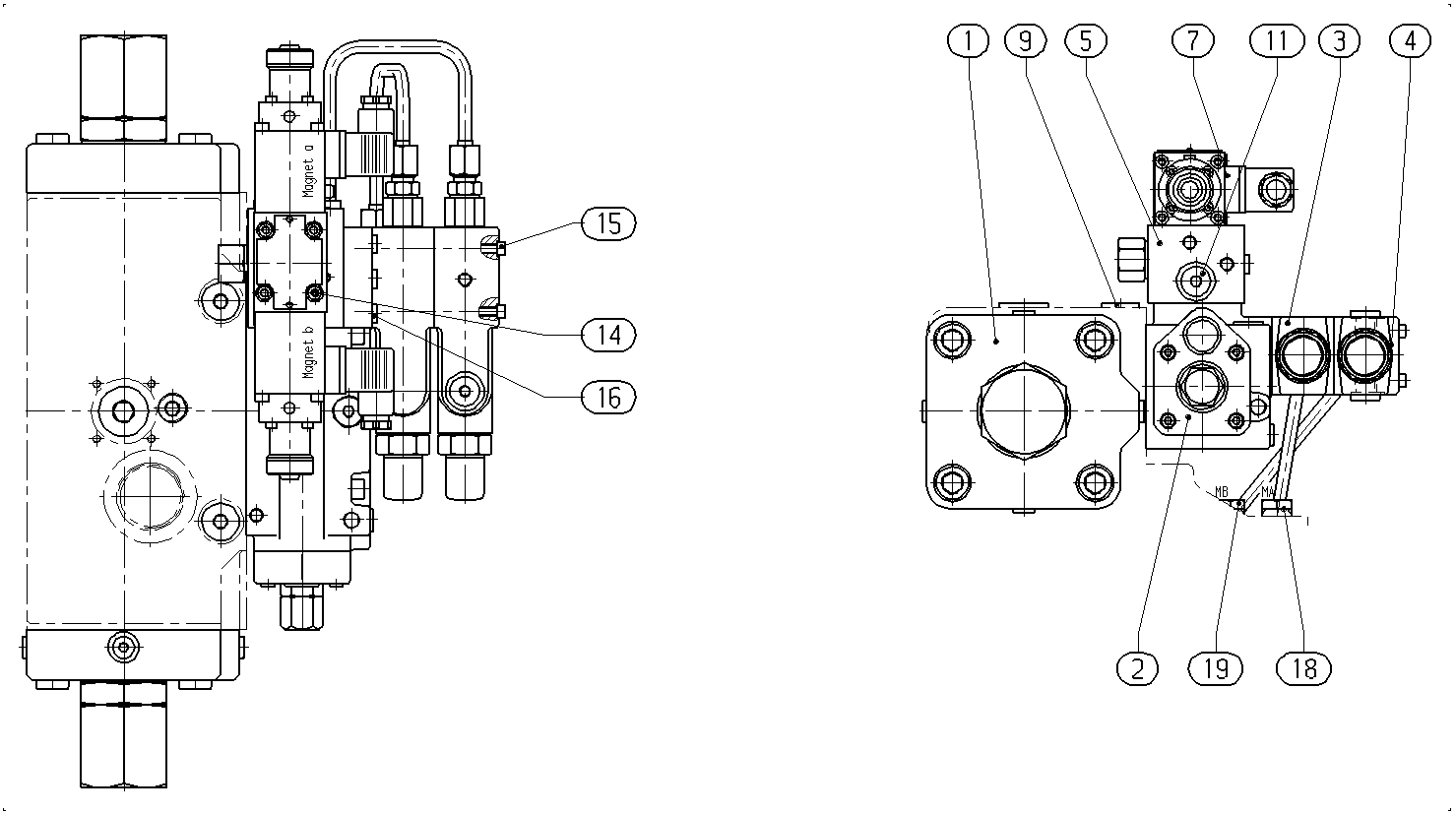

Assembly
CONTROLR902402378
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910986863 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910991029 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R910989468 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910989257 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910989090 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R902405798 | PROPORTIONAL PRESSURE RELIEF VALVE Assembly parts list →L | 1 | ||
| R909153815 | SCREW PLUG | 1 | ||
| R909151979 | SCREW PLUG | 2 | ||
| R910799998 | SOCKET HEAD CAP SCREW | 4 | ||
| R910799998 | SOCKET HEAD CAP SCREW | 4 | ||
| R909154024 | SCREW PLUG | 3 | ||
| R910989845 | PIPING Assembly parts list →L | 1 | ||
| R910989815 | PIPING Assembly parts list →L | 1 |
