Assembly

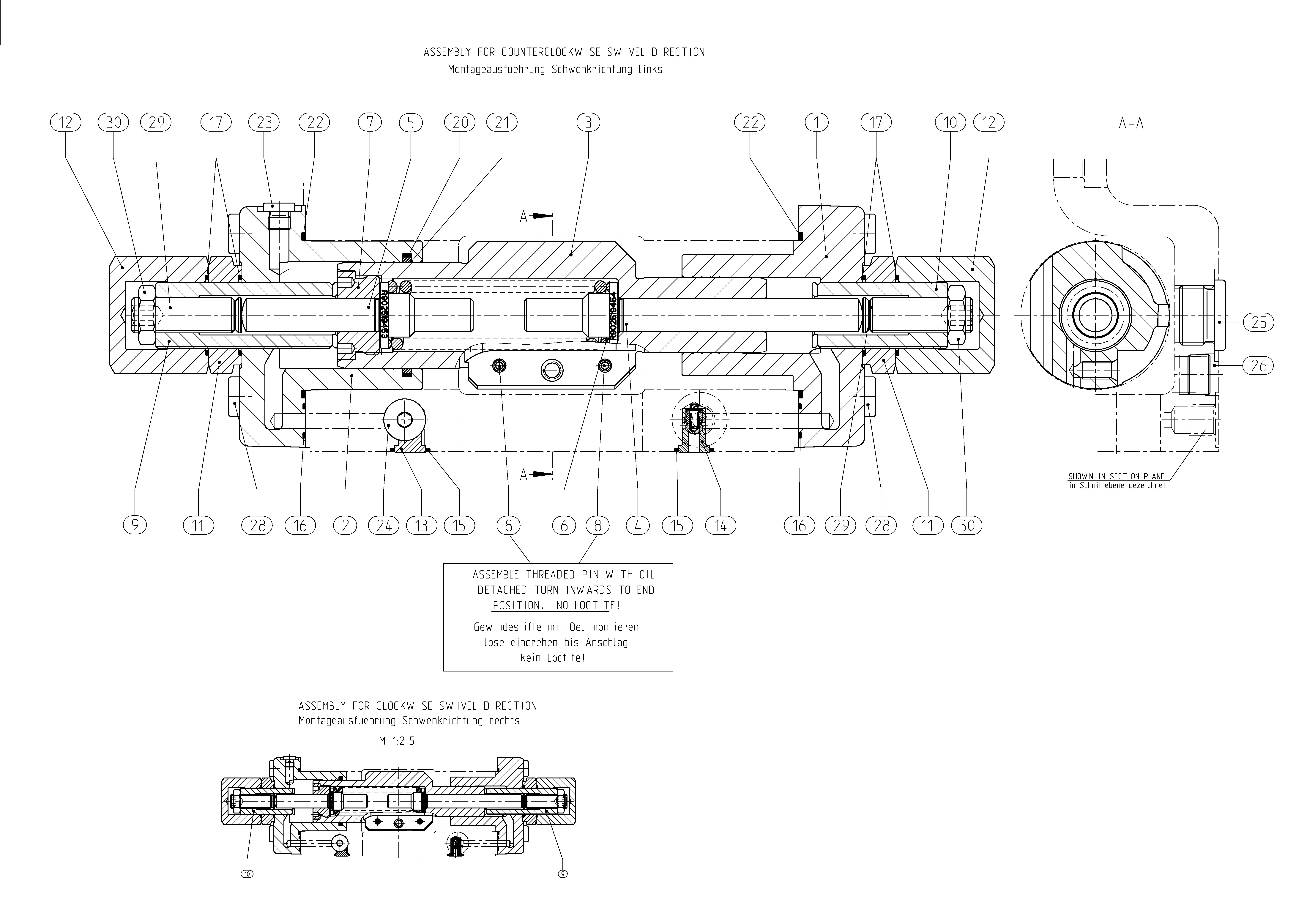

ADJUSTING PIECER902402704
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910907844 | PISTON HOUSING | 1 | ||
| R910933090 | PISTON HOUSING | 1 | ||
| R902530757 | ADJUSTING PISTON | 1 | ||
| R902519854 | PRESSURE PISTON | 1 | ||
| R902519853 | PRESSURE PISTON | 1 | ||
| R910948624 | COMPRESSION SPRING | 1 | ||
| R910948705 | PISTON GUIDE | 1 | ||
| R910187844 | SETSCREW | 2 | ||
| R902519611 | STOP SCREW | 1 | ||
| R902519610 | STOP SCREW | 1 | ||
| R910902817 | NUT | 2 | ||
| R910902818 | CAP NUT | 2 | ||
| R910978691 | PLUG | 1 | ||
| R910978655 | HY-CHECK VALVE Assembly parts list →L | 1 | ||
| R910415537 | O-RINGD | 2 | ||
| R910522449 | O-RINGD | 2 | ||
| R910759228 | O-RINGD | 4 | ||
| R910976658 | O-RING | 2 | ||
| R910929952 | ROD SEAL | 1 | ||
| R902650321 | R-RINGD | 2 | ||
| R909153364 | SCREW PLUG | 3 | ||
| R909151979 | SCREW PLUG | 1 | ||
| R909153365 | SCREW PLUGD | 1 | ||
| R910987526 | SCREW PLUG | 1 | ||
| R910220264 | SOCKET HEAD CAP SCREW | 8 | ||
| R902519562 | STUD BOLT | 2 | ||
| R910127116 | HEXAGON NUT | 2 | ||
| 31 | R909151979 | SCREW PLUG | 1 |
