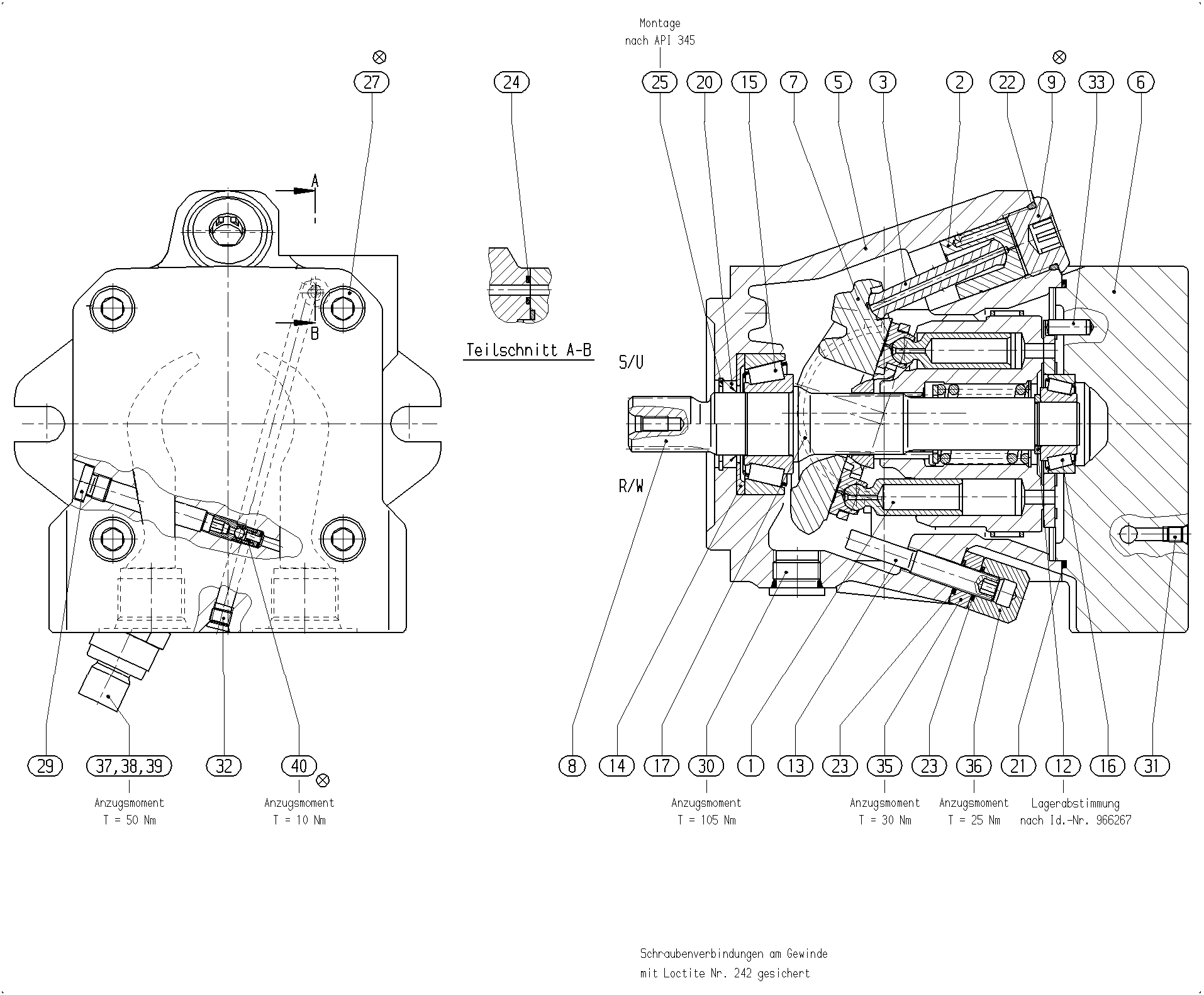

Assembly
BASE UNITR902403349
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902533796 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910993694 | ADJUSTING PISTON | 1 | ||
| R902439967 | PISTON ROD | 1 | ||
| R902403111 | MOTOR HOUSING | 1 | ||
| R910997682 | CONNECTION PLATE | 1 | ||
| R902443524 | SWASH PLATE | 1 | ||
| R902417183 | DRIVE SHAFT | 1 | ||
| R902447575 | SCREW PLUG Assembly parts list →L | 1 | ||
| R902400789 | ADJUSTMENT SHIM | 1 | ||
| R910947854 | STOP SCREW | 1 | ||
| R910987890 | STOP RING | 1 | ||
| R902438109 | TAPERED-ROLLER BEARING | 1 | ||
| R902438110 | TAPERED-ROLLER BEARING | 1 | ||
| R902410506 | BEARING SHELL | 2 | ||
| R910988019 | SHAFT SEALING RINGD | 1 | ||
| R902650851 | O-RINGD | 1 | ||
| R910804886 | O-RINGD | 2 | ||
| R910942133 | R-RINGD | 1 | ||
| R902403815 | RETAINING RING | 1 | ||
| R910963995 | SOCKET HEAD CAP SCREW | 4 | ||
| R909156649 | SCREW PLUGD | 1 | ||
| R910901969 | SCREW PLUG | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R910998240 | NUT | 1 | ||
| R910904041 | CAP NUT | 1 | ||
| R902600621 | ROTATIONAL SPEED SENSOR | 1 | ||
| R902403196 | SPACER RING | 1 | ||
| R910901354 | O-RING | 2 | ||
| R902424169 | SHUTTLE VALVE Assembly parts list →L | 1 |
