Assembly

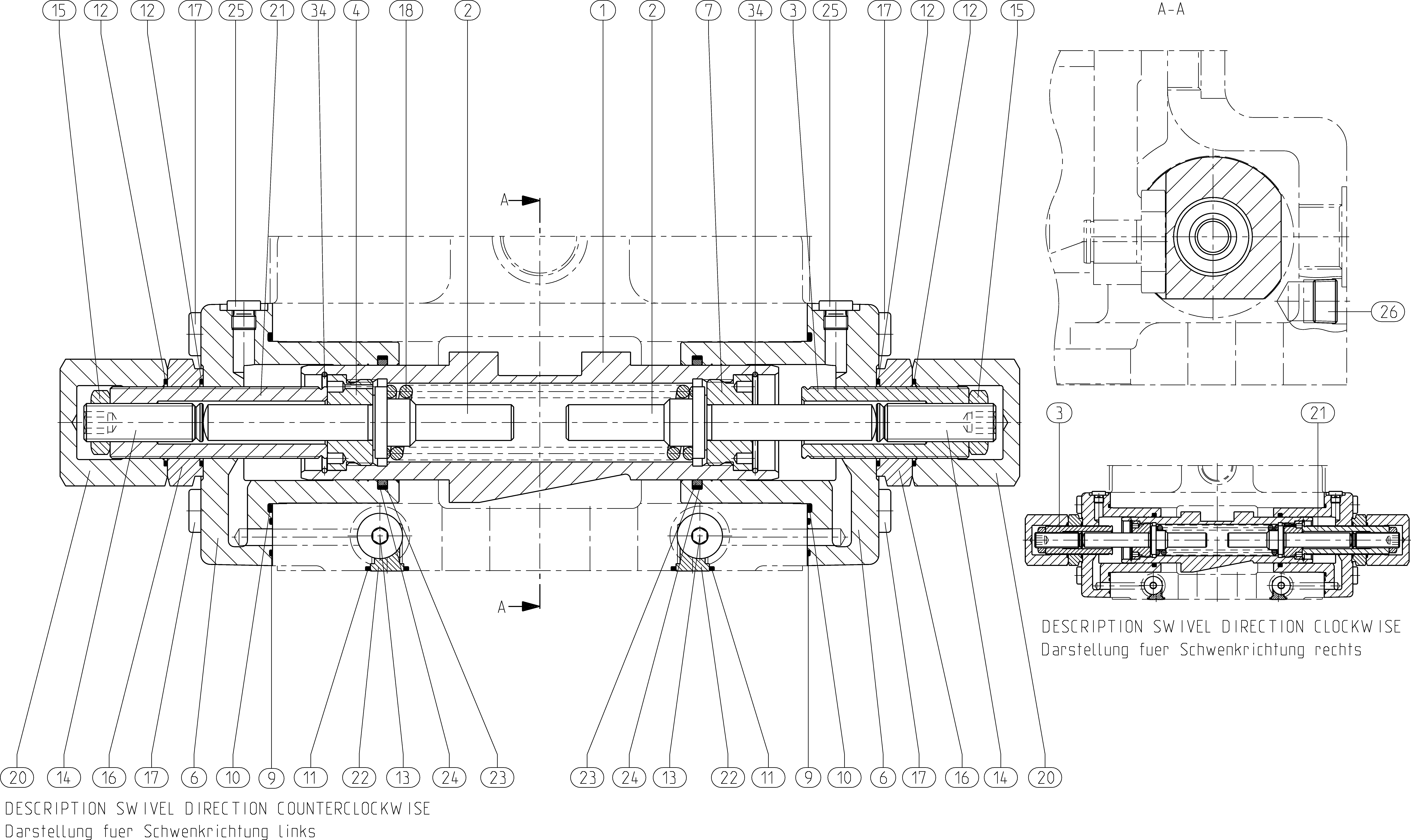

ADJUSTING PIECER902404521
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910901134 | ADJUSTING PISTON | 1 | ||
| R910936324 | PRESSURE PISTON | 2 | ||
| R902555527 | STOP SCREW | 1 | ||
| R910971792 | PISTON GUIDE | 1 | ||
| R910933090 | PISTON HOUSING | 2 | ||
| R910948705 | PISTON GUIDE | 1 | ||
| R910522449 | O-RINGD | 2 | ||
| R902650321 | R-RINGD | 2 | ||
| R910415537 | O-RING | 2 | ||
| R910759228 | O-RINGD | 4 | ||
| R909151979 | SCREW PLUG | 2 | ||
| R902519562 | STUD BOLT | 2 | ||
| R910127116 | HEXAGON NUT | 2 | ||
| R910902817 | NUT | 2 | ||
| R910220264 | SOCKET HEAD CAP SCREW | 8 | ||
| R910922048 | COMPRESSION SPRING | 1 | ||
| R910902818 | CAP NUT | 2 | ||
| R902555526 | STOP SCREW | 1 | ||
| R910978691 | PLUG | 2 | ||
| R910929952 | ROD SEALD | 2 | ||
| R910976658 | O-RINGD | 4 | ||
| R909153364 | SCREW PLUGD | 6 | ||
| R910987526 | SCREW PLUG | 1 | ||
| R910927999 | SNAP RING | 2 |
