Assembly

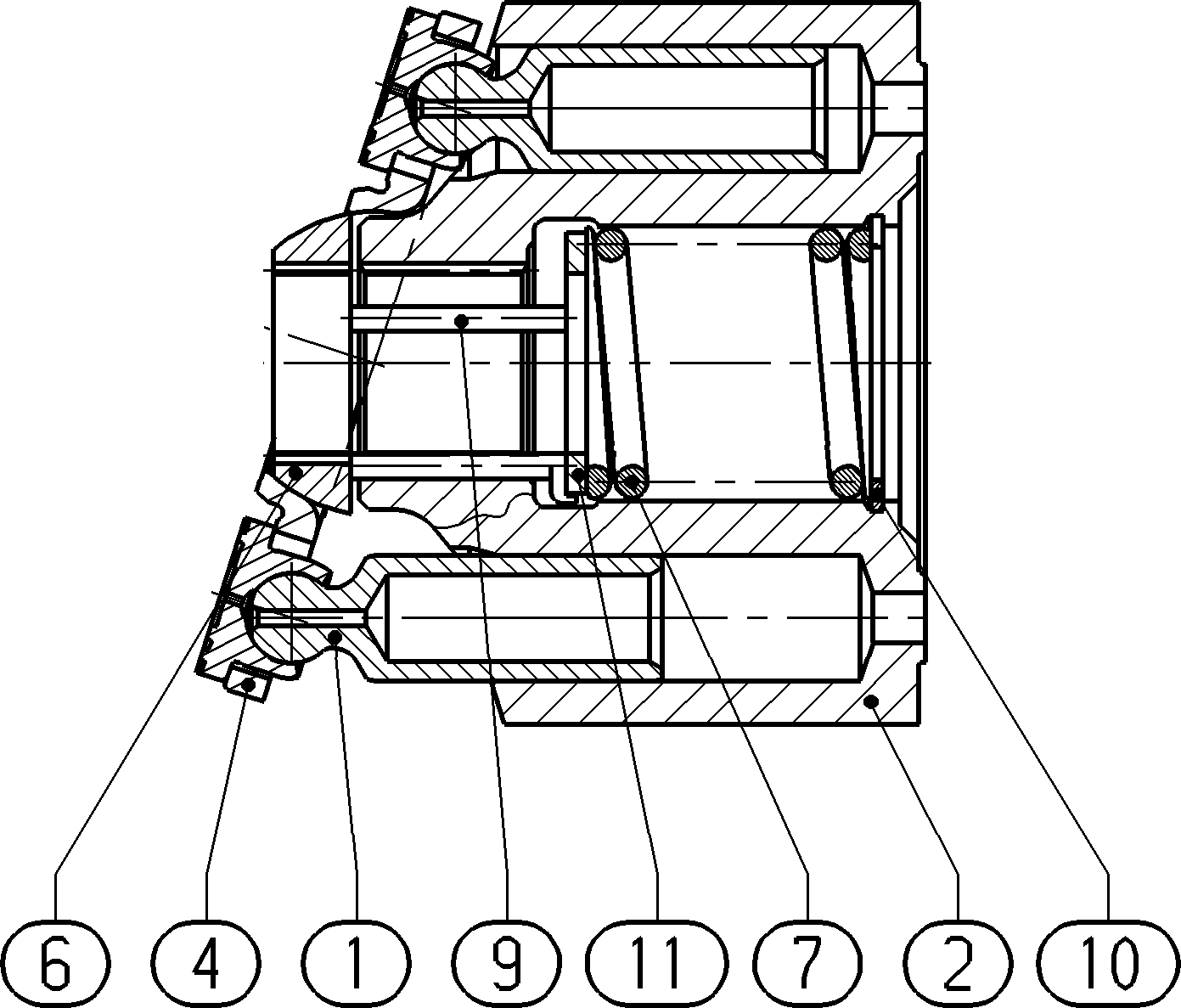

ROTARY GROUPR902404827
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902400519 | PISTON PAD | 9 | ||
| R902404819 | CYLINDER | 1 | ||
| R902400692 | RETAINING PLATE | 1 | ||
| R902400693 | RETAINING BALL | 1 | ||
| R902400694 | COMPRESSION SPRING | 1 | ||
| R902400537 | PRESSURE PIN | 3 | ||
| R909156163 | V-RING | 1 | ||
| R902400695 | SUPPORTING DISC | 1 |
