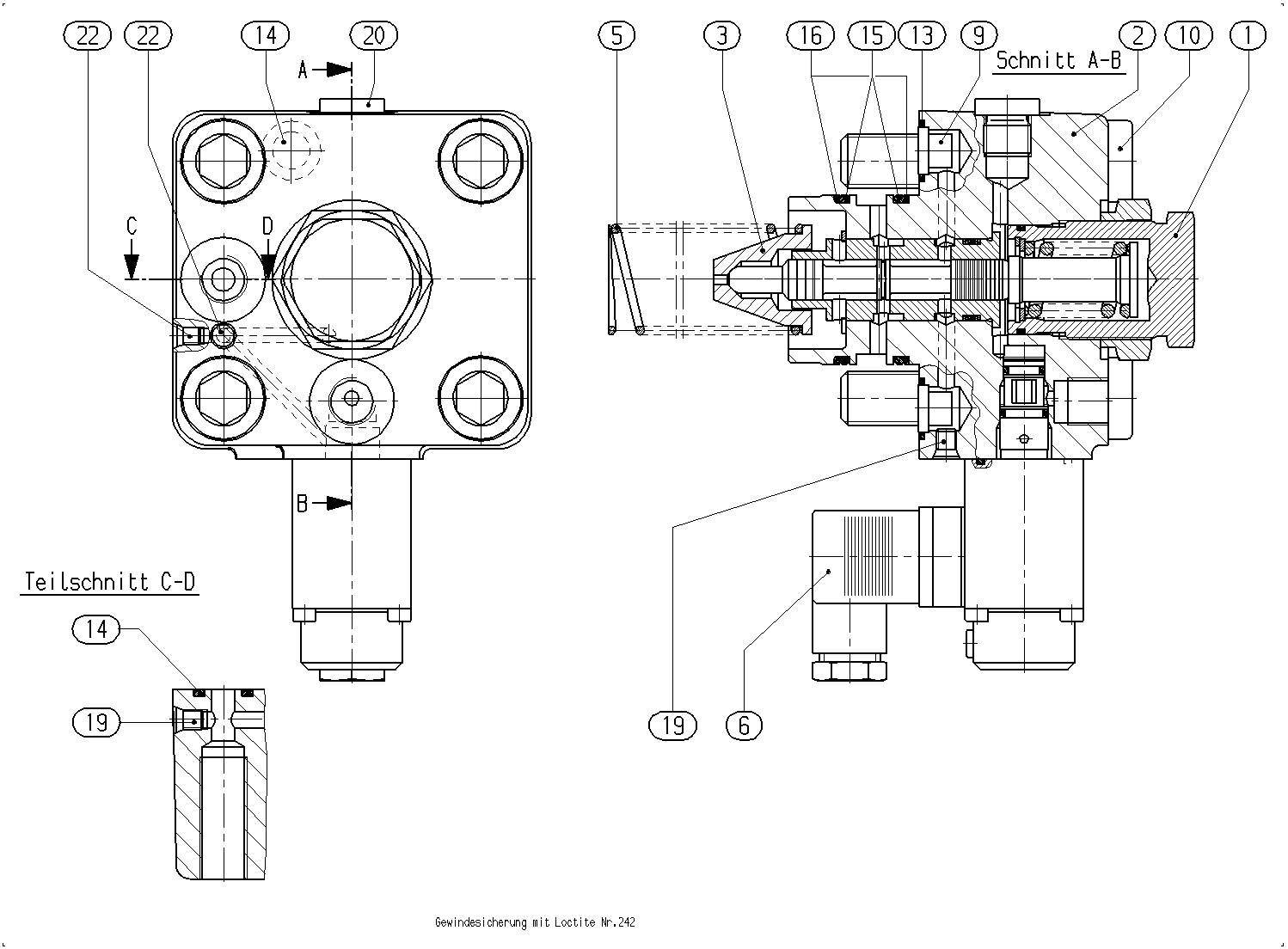

Assembly
CONTROL PARTR902404960
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910926601 | VALVE INSERT | 1 | ||
| R910930803 | CONTROL HOUSING | 1 | ||
| R910929872 | SPRING DISK | 1 | ||
| R910930556 | COMPRESSION SPRING | 1 | ||
| R902408868 | PRESSURE REDUCING VALVE Assembly parts list →L | 1 | ||
| R902430575 | PLUG | 2 | ||
| R910126535 | SOCKET HEAD CAP SCREW | 4 | ||
| R910976410 | O-RING | 2 | ||
| R910518336 | O-RINGD | 3 | ||
| R910929855 | O-RINGD | 2 | ||
| R910929791 | BACKUP RINGD | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909153930 | SCREW PLUGD | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 |
