Assembly

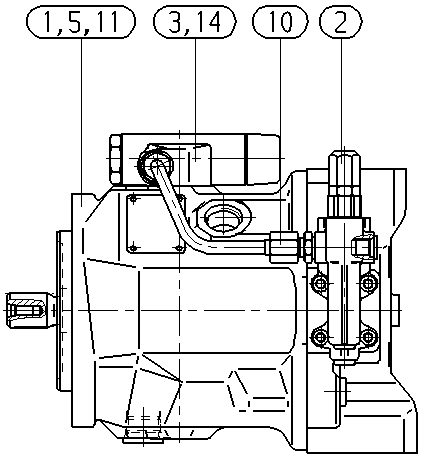

AXIAL-PISTON PUMPR902406924
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910986558 | BASE UNIT Assembly parts list →L | 1 | ||
| R902533492 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902533217 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910918079 | SIDE MARKER RING | 1 | ||
| R910960164 | PIPING Assembly parts list →L | 1 | ||
| R910947533 | POWER DIAGRAM | 1 | ||
| R909154478 | SCREW PLUG | 1 | ||
| 70 | R902421945 | SHIPPING PROTECTION | 1 | |
| 71 | R902421948 | SHIPPING PROTECTION | 1 | |
| 72 | R902603190 | SEAL SCREW | 1 | |
| 73 | R902602014 | SEAL SCREW | 1 | |
| 75 | R909830326 | NAMEPLATE | 1 |
