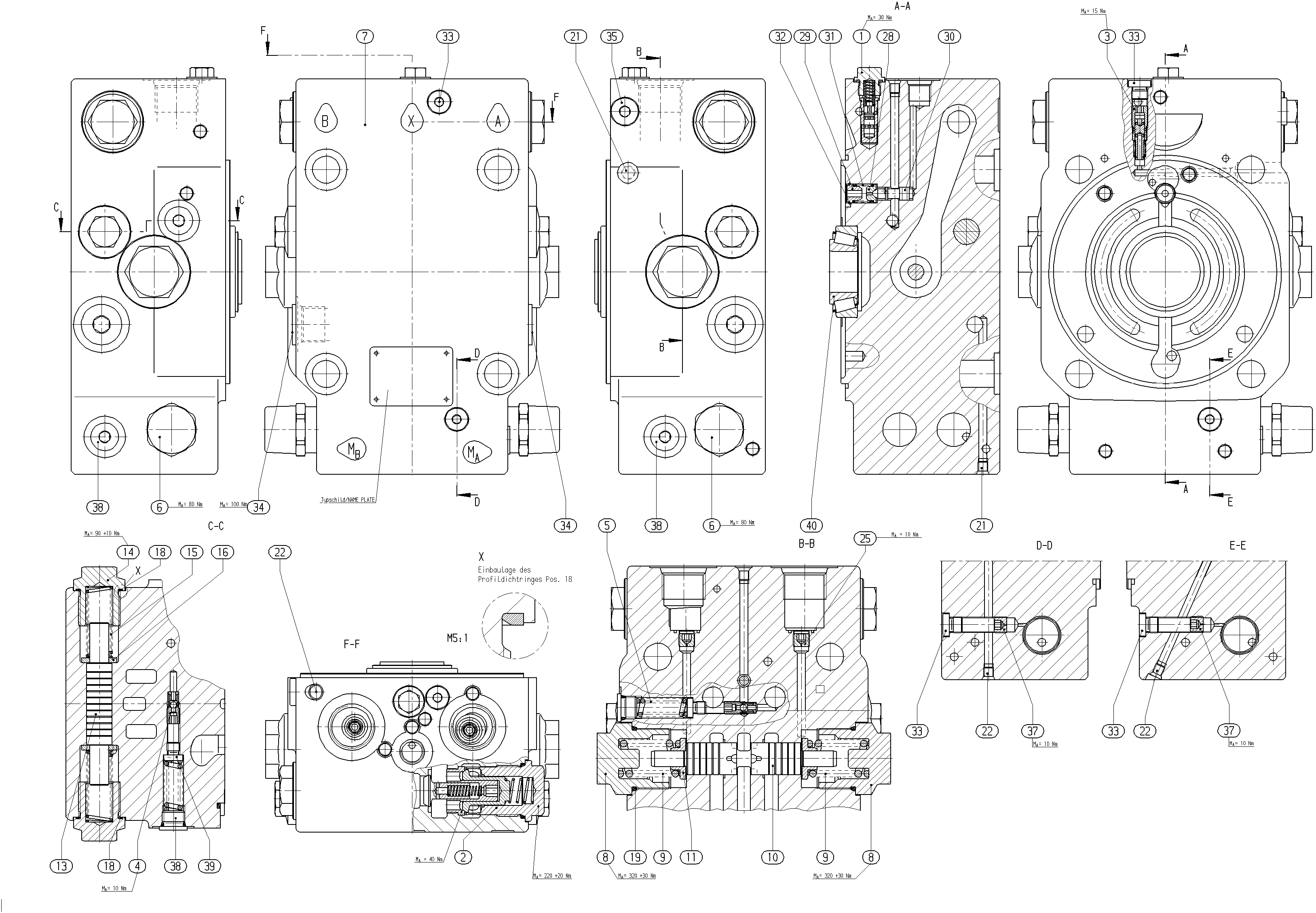

Assembly
CONNECTION PLATER902407242
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902400843 | BRAKE RELEASE VALVE Assembly parts list →L | 1 | ||
| R902038539 | CHECK VALVE | 2 | ||
| R902407296 | VALVE | 1 | ||
| R902423170 | SHUTTLE VALVE | 1 | ||
| R902433496 | COMPRESSION SPRING | 1 | ||
| R901224582 | PRESSURE RELIEF VALVE | 2 | ||
| R910989329 | CONNECTION PLATE | 1 | ||
| R902404150 | SCREW PLUG | 2 | ||
| R910976270 | COMPRESSION SPRING | 2 | ||
| R902400534 | PISTON | 1 | ||
| R902025910 | SPRING DISK | 2 | ||
| R910989884 | DAMPING PISTON | 1 | ||
| R910989885 | SCREW PLUG | 2 | ||
| R910989887 | COMPRESSION SPRING | 2 | ||
| R910989886 | WASHER | 2 | ||
| R910744506 | SEAL RING | 2 | ||
| R909831230 | O-RING | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 8 | ||
| R910939292 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910912082 | NOZZLE | 2 | ||
| R909426138 | SPRING DISK | 1 | ||
| R910987354 | SPRING DISK | 1 | ||
| R909426137 | CONTROL PISTON | 1 | ||
| R909432802 | COMPRESSION SPRING | 1 | ||
| R910987573 | SNAP RING | 1 | ||
| R902650657 | SCREW PLUG | 4 | ||
| R910967343 | SCREW PLUG | 1 | ||
| R902650659 | SCREW PLUG | 1 | ||
| R902418136 | NOZZLE | 2 | ||
| R902650661 | SCREW PLUG | 3 | ||
| R902650656 | SCREW PLUG | 1 | ||
| R910720232 | TAPERED-ROLLER BEARING | 1 |
